Active Weightlessness System

    • Active Weightlessness System

    Purpose:
    Ground modal testing under conditions simulating weightlessness and testing of large transformable spacecraft systems deployment, including reflectors with a diameter up to 50 m.
    Year of release: 2014
    Guaranteed service life (years): 3
    Estimated production / delivery time (months): 12
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Object suspension error <20 g
    Residual added mass <10 g
    Frequency band of modal testing 0,01 - 30 Hz

    Description

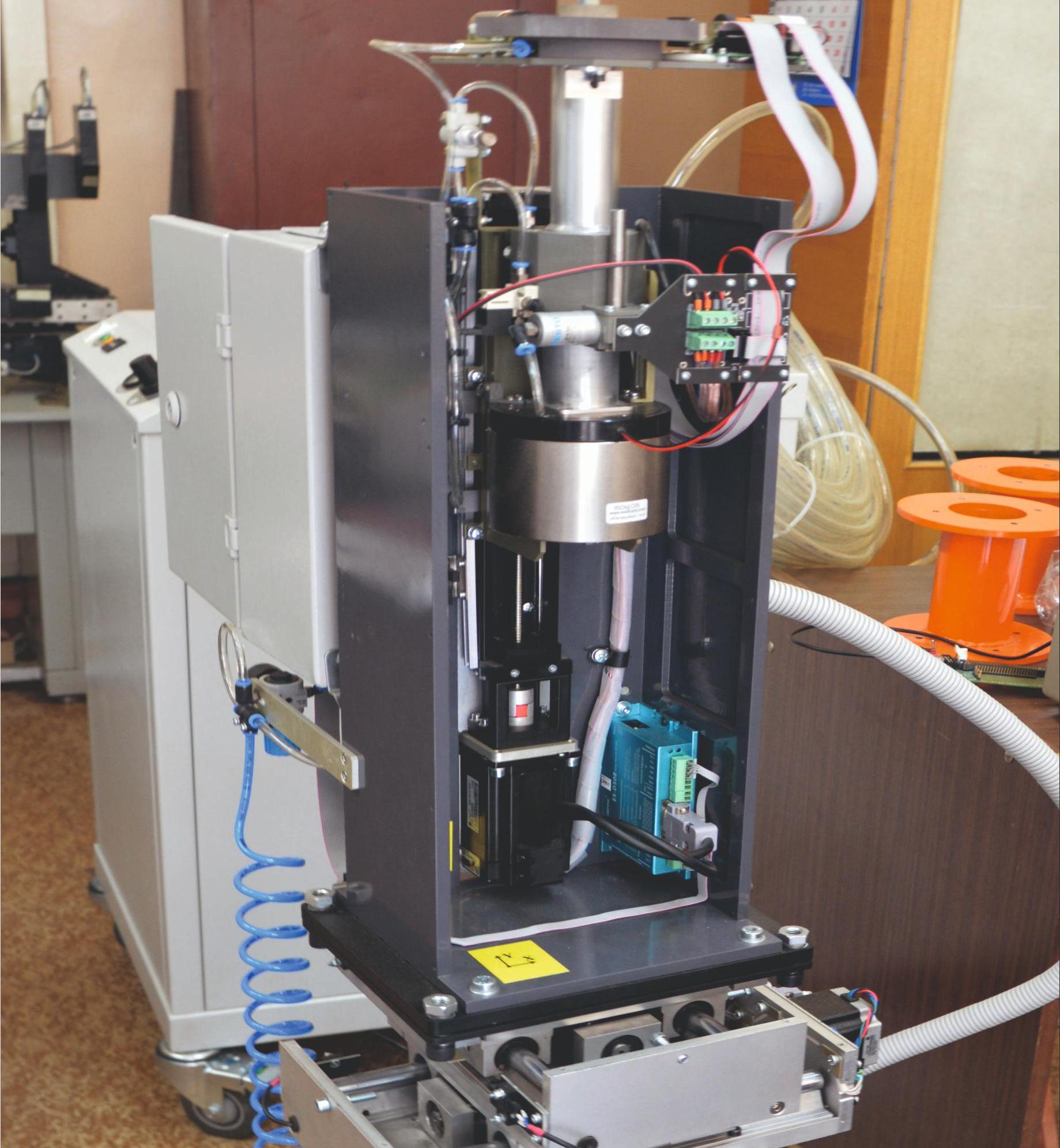

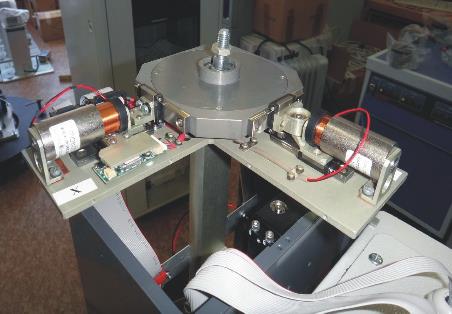

    Active suspension system for large-sized transformable spacecraft systems at ground modal testing. Simultaneously with the suspension, the dynamic parameters are estimated (velocity, acceleration, etc.) with reference to the absolute time scale.
