Control Complex of a Large-sized Products

    • Control Complex of a Large-sized Products

    Purpose:

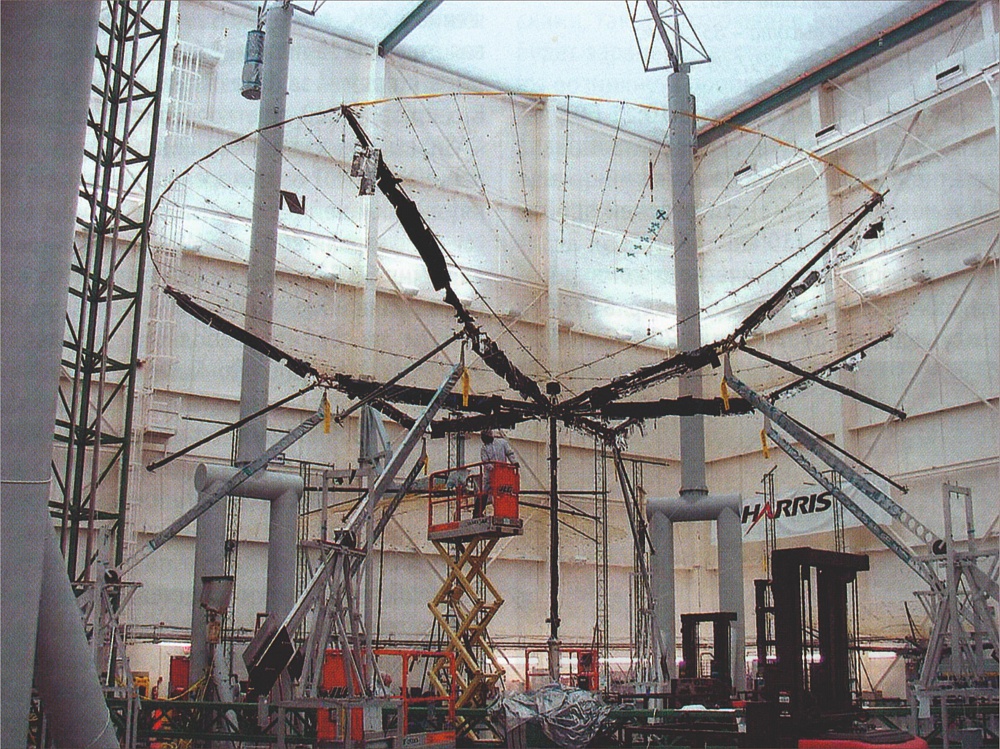

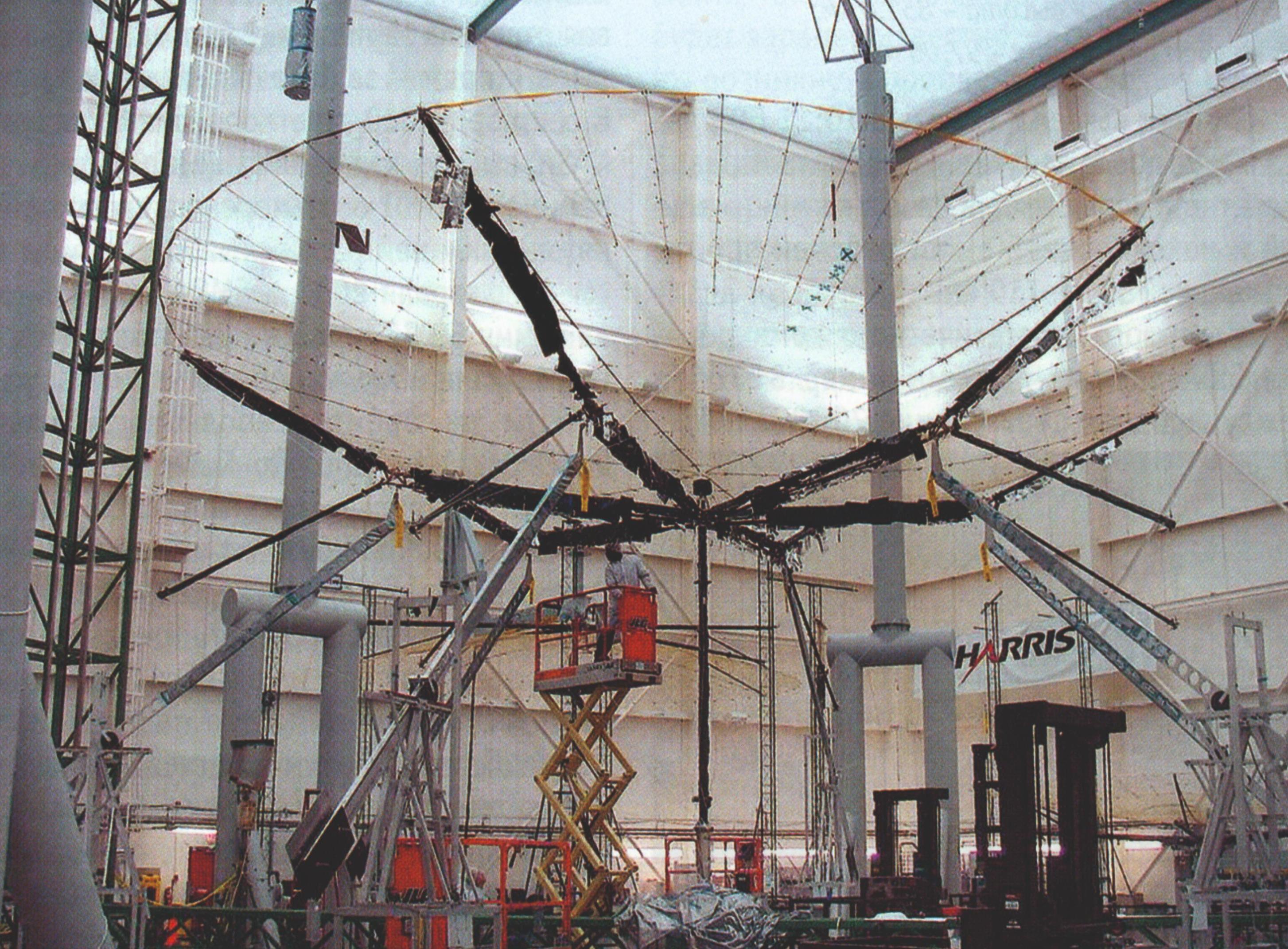

    Real time control of large-sized product forms (from 10 m and more).
    Year of release: 2007
    Guaranteed service life (years): 1
    Estimated production / delivery time (months): 12
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Measurement range, mm ± 20
    Measurement error, mm 0,1
    Processing speed, measurement / s 20
    Overall dimensions, mm ⌀ 50 х 40
    Weight, gr 40
    Sensors scanning time, s 0,1
    Monitoring speed, thous. reports / s up to 10

    Description

    Programmable control complex of large-sized product forms in real time.
    The principle of operation is based on measurement of the product shape deviation from the a predetermined value using a network of compact triangulation distanse sensors, mounted on
    ... Programmable control complex of large-sized product forms in real time.

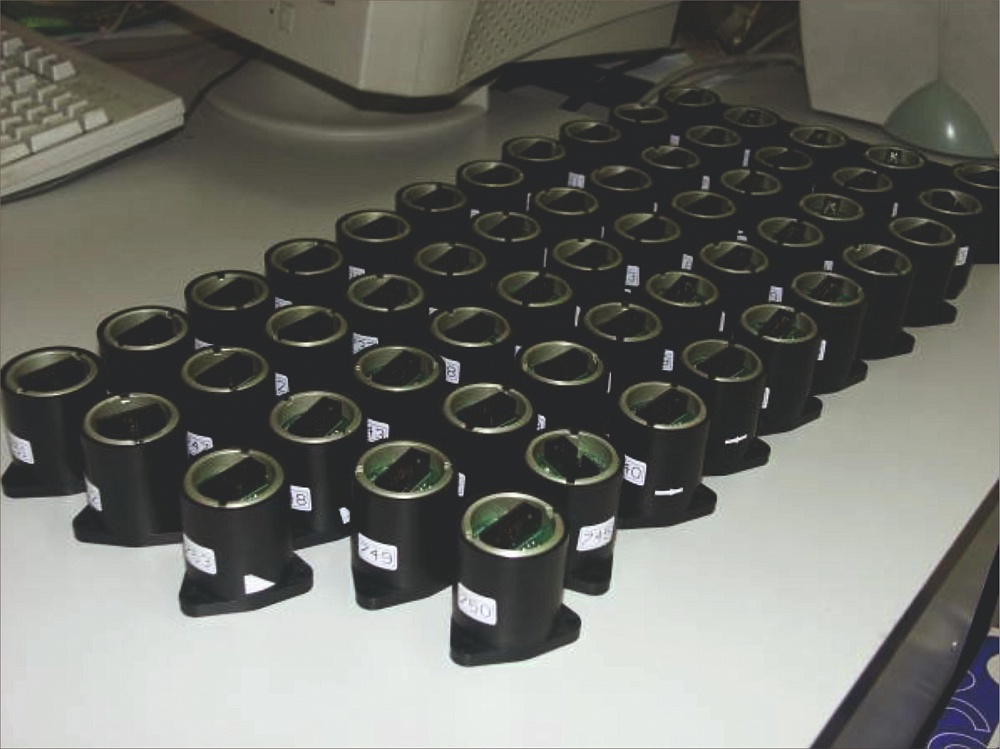

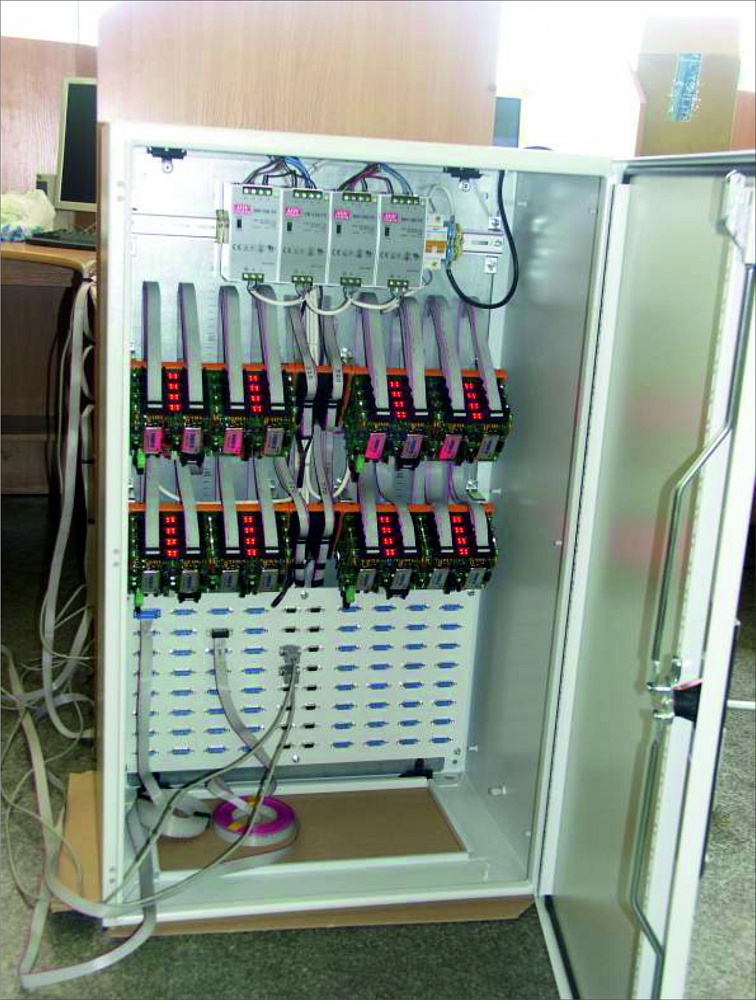

    The principle of operation is based on measurement of the product shape deviation from the a predetermined value using a network of compact triangulation distanse sensors, mounted on the stocks near the control points of the object, followed by processing of measurement information.
    Read more...
