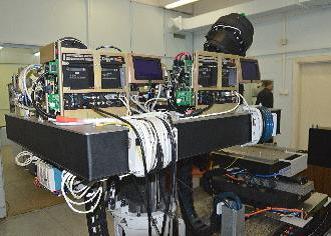

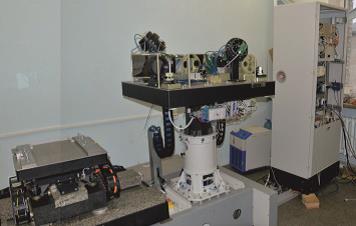

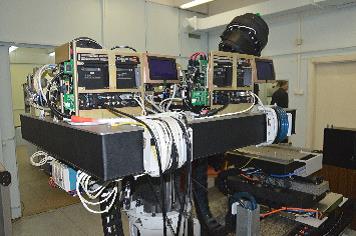

Synthesis System of IR Images

    • Synthesis System of IR Images

    Purpose:
    Designed to create dynamic infrared images of arbitrary topology in the plane of the location of the photosensitive elements of the test photodetector.
    Year of release: 2018
    Guaranteed service life (years): 10
    Estimated production / delivery time (months): 12
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Working spectral range 2,5 - 4,6 mkm
    Diameter of a point object in the image plane for object channel < 30 mkm
    The concentration ratio of energy in the spot scattering for object channel > 0,75 ± 0,07
    Irradiation in image plane for object channel 10-9 - 10-6 w/cm2
    Irradiation in image plane for background noise channel 10-9 - 10-7 w/cm2
    Scanning device positioning error > 2 mkm

    Description

    Operation princicple is based on the use of two independent high-speed channels of the tested product's surface illumination - the object channel (CO) and the background channel (CF).
