S-band Part-turn Antenna System

    • S-band Part-turn Antenna System

    Purpose:
    Designed for receiving signals in the S-band from satellite repeaters located on the GSO.
    Year of release: 2015
    Guaranteed service life (years): 10 years
    Estimated production / delivery time (months): 9
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Reflector diameter 2,5 m
    Receive Frequency Range 3,1-3,2 GHz
    Polarization circular right
    Receive gain ≥35,3 dB
    Working angles in azimuth ± 60°
    Working angles in elevation 0° … 60°
    Working speeds < 1,0°/s

    Description

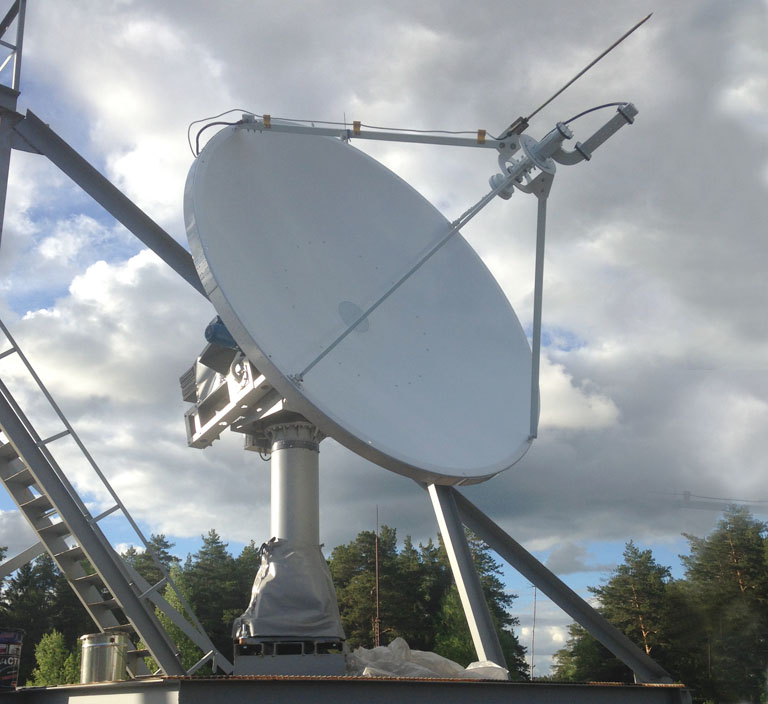

    The receiving single-mirror antenna system includes an antenna with a reflector of 2.5 m with an S-band irradiating system, a slewing ring with electromechanical drives. The structure includes a low-noise input structure of the S-band.
