Antenna Feeder Device AC-25KRL-Ku/S

    • Antenna Feeder Device AC-25KRL-Ku/S

    Purpose:
    Designed for use as part of satellite earth stations to operate in S and Ku bands.
    Year of release: 2014
    Guaranteed service life (years): 15 years
    Estimated production / delivery time (months): 9
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Reflector diameter 2,4 m
    Receive Frequency Range 2,025-2,1092; 10,712-10,770 GHz
    Transmission Frequency Ranges 2,2-2,29; 14,52-14,575 GHz
    Polarization circular
    Receive gain ≥31,0 dB (S); ≥45,0 dB (Ku)
    Transmission gain ≥32,0 dB (S); ≥47,0 dB (Ku)
    Cross polarization interchange ≥27 dB
    Working angles in azimuth ± 20°
    Working angles in elevation 3° … 26°
    Working speeds < 1,0°/s

    Description

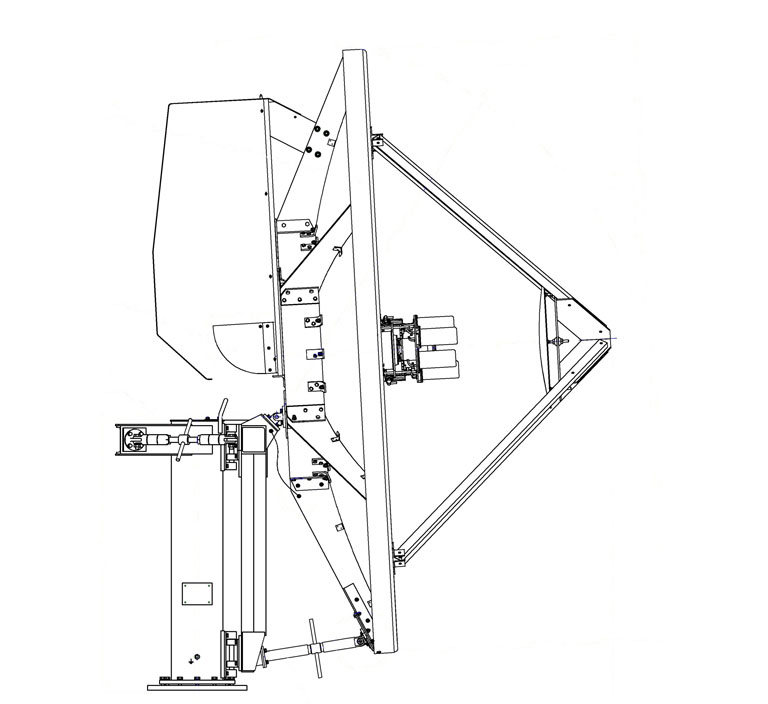

    The transceiver two-mirror antenna system is built on the Cassegrain system, includes an antenna with a 2.4 m reflector with a dual-band irradiating system and a counter-reflector, a slewing ring with electromechanical drives. The structure does not include r
    ... The transceiver two-mirror antenna system is built on the Cassegrain system, includes an antenna with a 2.4 m reflector with a dual-band irradiating system and a counter-reflector, a slewing ring with electromechanical drives.
    The structure does not include radio receivers and radio transmitting devices.
    Read more...
