Antenna feeder device

    • Antenna feeder device

    Purpose:
    Designed for use as part of earth stations in satellite communications C-band.
    Year of release: 2012
    Guaranteed service life (years): 15 years
    Estimated production / delivery time (months): 9
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Reflector diameter 2,4 m
    Receive Frequency Range 3,4-4,2 GHz
    Transmission Frequency Range 5,7-6,6 GHz
    Polarization circular
    Receive gain ≥35,7 dB
    Transmission gain ≥40,2 dB
    Cross polarization interchange ≥30 dB
    Working angles in azimuth ± 270°
    Working angles in elevation 0° … 90°
    Working speeds < 1,0°/s

    Description

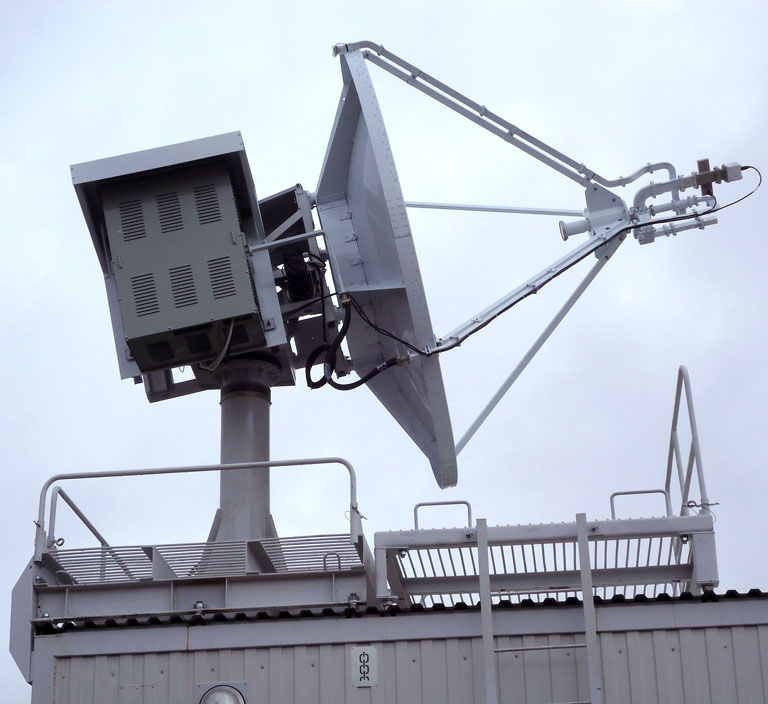

    The transceiver single-mirror antenna system includes an antenna with a 2.4 m reflector with an irradiating system, a slewing ring with electromechanical drives. The structure does not include radio receivers and radio transmitting devices.
