Antenna Post L- and S-bands

    • Antenna Post L- and S-bands

    Purpose:
    Designed for use in satellite communications earth stations for operation in the L- and S-bands.
    Year of release: 2016
    Guaranteed service life (years): 10 years
    Estimated production / delivery time (months): 12
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Reflector diameter 6,0 m
    Receive Frequency Range 1,586-1,616; 1,233- 1,263; 1,187- 1,217; 2,197- 2,227 GHz
    Transmission Frequency Range 2,197-2,227 GHz
    Polarization circular right
    Working angles in azimuth ± 270°
    Working angles in elevation 0° … 90°
    Azimuth operating speed < 4,0°/s
    Elevation working speed < 3,0°/s

    Description

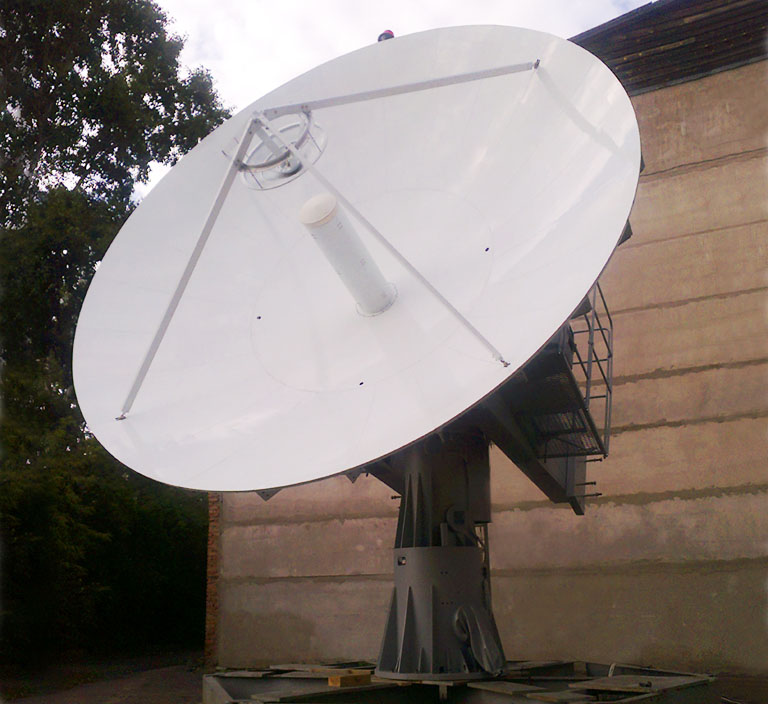

    The transceiver two-mirror antenna system is built on the Cassegrain system, includes an antenna with a 6.0 m reflector with an irradiating system and a counter-reflector, a slewing ring with electromechanical drives. The structure does not include radio rece
    ... The transceiver two-mirror antenna system is built on the Cassegrain system, includes an antenna with a 6.0 m reflector with an irradiating system and a counter-reflector, a slewing ring with electromechanical drives.
    The structure does not include radio receivers and radio transmitting devices.
