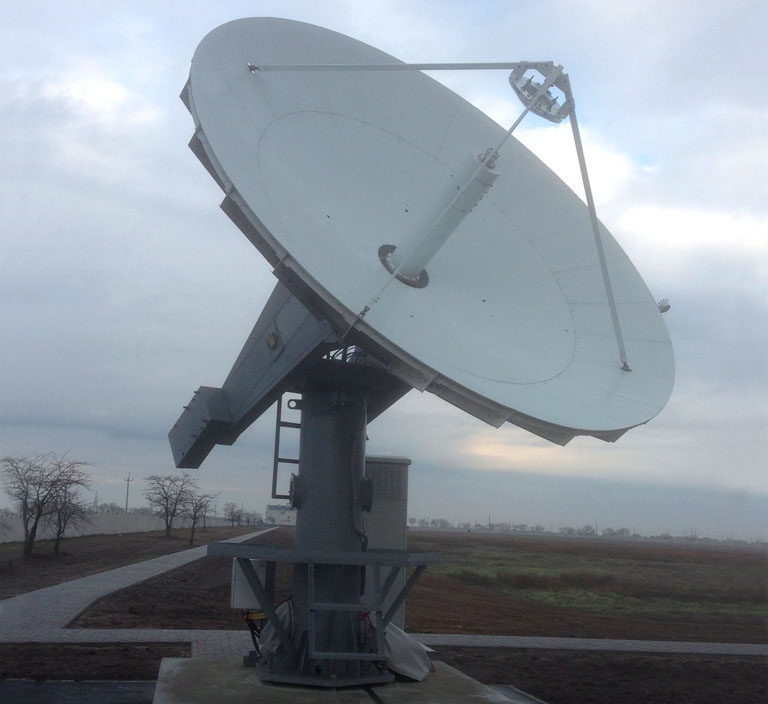

Antenna System 4,1 meters Ka

    • Antenna System 4,1 meters Ka

    Purpose:
    Designed to receive signals in the Ka- band from satellites located on the GSO.
    Year of release: 2016
    Guaranteed service life (years): 15 years
    Estimated production / delivery time (months): 9
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Reflector diameter 4,1 m
    Receive Frequency Range 17,7-21,2 GHz
    Polarization circular or linear
    Receive gain ≥55,0 dB
    Cross polarization interchange ≥27 dB
    Cross polarization interchange ≥30 dB
    Working angles in azimuth ± 60°
    Working angles in elevation 5° … 45°
    Working speeds < 0,15°/s

    Description

    The receiving two-mirror antenna system is built on the Cassegrain system, it includes an antenna with a 4.1 m reflector with an irradiating system and a counter-reflector, and a slewing ring with electromechanical drives. Remote polarization switching. The s
    ... The receiving two-mirror antenna system is built on the Cassegrain system, it includes an antenna with a 4.1 m reflector with an irradiating system and a counter-reflector, and a slewing ring with electromechanical drives. Remote polarization switching.
    The structure does not include radio receivers and radio transmitting devices.
