Antenna System 7.2 m

Purpose:
Designed for use in satellite communications earth stations for operation in the C-band.
Year of release: 2016
Guaranteed service life (years): 15 years
Estimated production / delivery time (months): 12
Possibility to adapt the product to customer requirements: Yes


Parameter Value
Reflector diameter 7,2 m
Receive Frequency Range 3,38-3,425 GHz
Transmission Frequency Range 5,715-5,77 GHz
Polarization circular
Receive gain ≥45,0 dB
Transmission gain ≥49,0 dB
Ellipticity coefficient >0,8
Working angles in azimuth ± 60°
Working angles in elevation 5° … 60°
Working speeds < 0,3°/s

Description

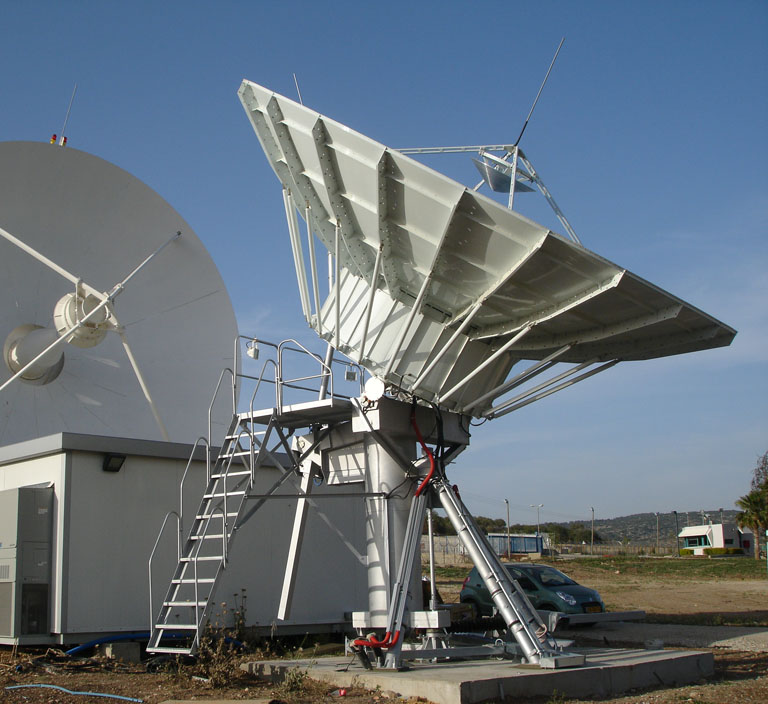

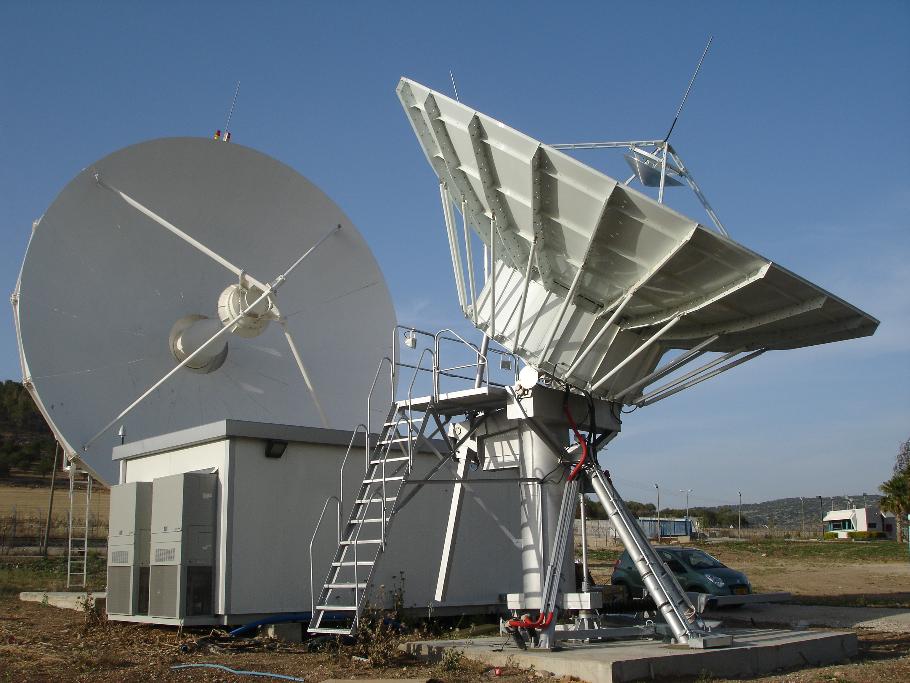

The two-mirror receiving and transmitting antenna system is constructed according to the Cassegrain system, it includes an antenna with a 7.2 m reflector with an irradiating system and a counter-reflector, and a slewing ring with electromechanical drives. The
... The two-mirror receiving and transmitting antenna system is constructed according to the Cassegrain system, it includes an antenna with a 7.2 m reflector with an irradiating system and a counter-reflector, and a slewing ring with electromechanical drives.
The structure does not include radio receivers and radio transmitting devices.
