Ground Antenna System 2

Purpose:
Designed to work as part of satellite communications earth stations for transmitting X-band signals.
Year of release: 2011
Guaranteed service life (years): 15 years
Estimated production / delivery time (months): 9
Possibility to adapt the product to customer requirements: Yes


Parameter Value
Reflector diameter 2,5 m
Transmission Frequency Range 7,9-8,4 GHz
Polarization circular, left, linear
Transmission gain ≥44,0 dB
Working angles in azimuth ± 65°
Working angles in elevation 0° … 85°
Working speeds < 0,5°/s

Description

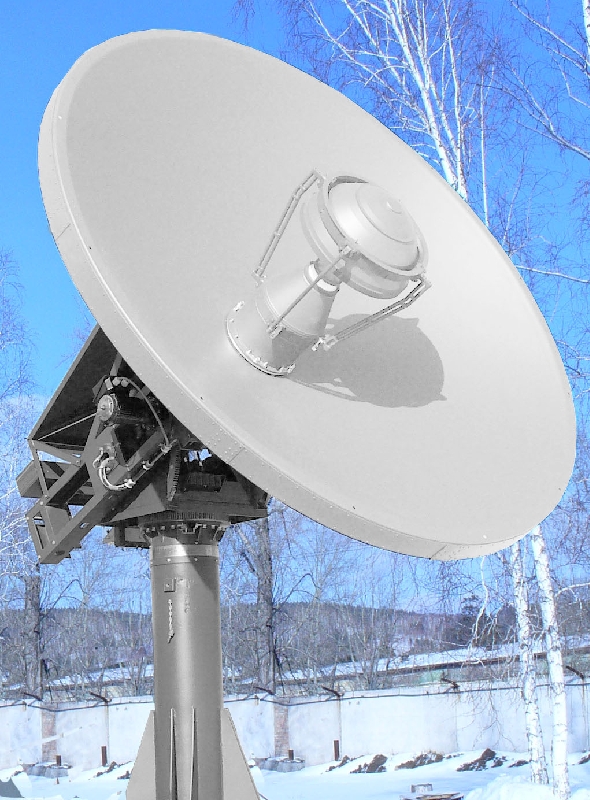

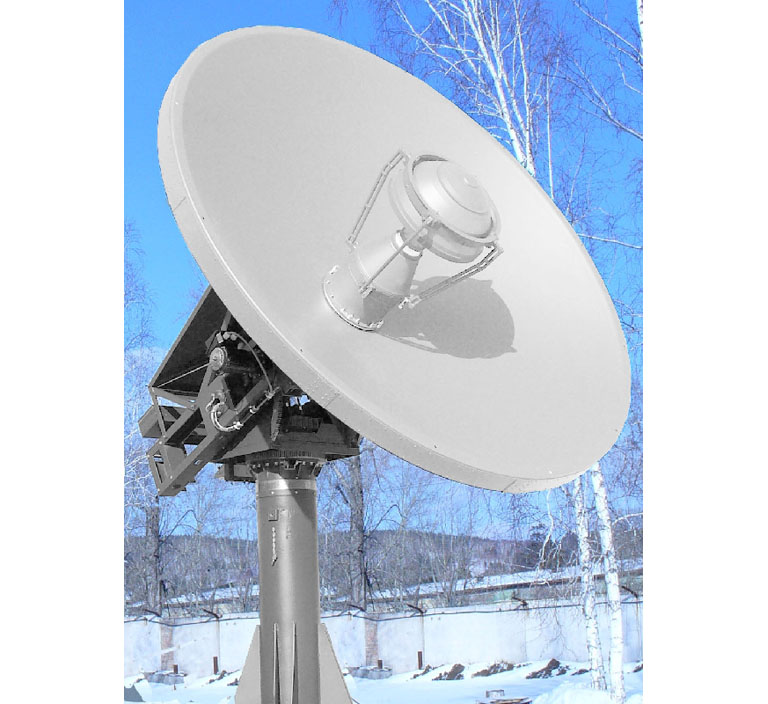

The transmitting two-mirror antenna system is built on the Cassegrain system, it includes an antenna with a reflector of 2.5 m with an irradiating system and a counter-reflector, and a slewing ring with electromechanical drives. The structure does not include
... The transmitting two-mirror antenna system is built on the Cassegrain system, it includes an antenna with a reflector of 2.5 m with an irradiating system and a counter-reflector, and a slewing ring with electromechanical drives.
The structure does not include radio receivers and radio transmitting devices.
