Ground Antenna System TAS 4 / 6-6.0 m

    • Ground Antenna System TAS 4 / 6-6.0 m

    Purpose:
    Designed for use in satellite communications earth stations for operation in the C-band.
    Year of release: 2015
    Guaranteed service life (years): 15 years
    Estimated production / delivery time (months): 12
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Reflector diameter 6,0 m
    Receive Frequency Range 3,4-4,2 GHz
    Transmission Frequency Range 5,725-6,725 GHz
    Polarization circular
    Receive gain ≥43,6 dB
    Transmission gain ≥48,1 dB
    Cross polarization interchange ≥30 dB
    Working angles in azimuth ± 60°
    Working angles in elevation 0° … 65°
    Working speeds < 0,15°/s

    Description

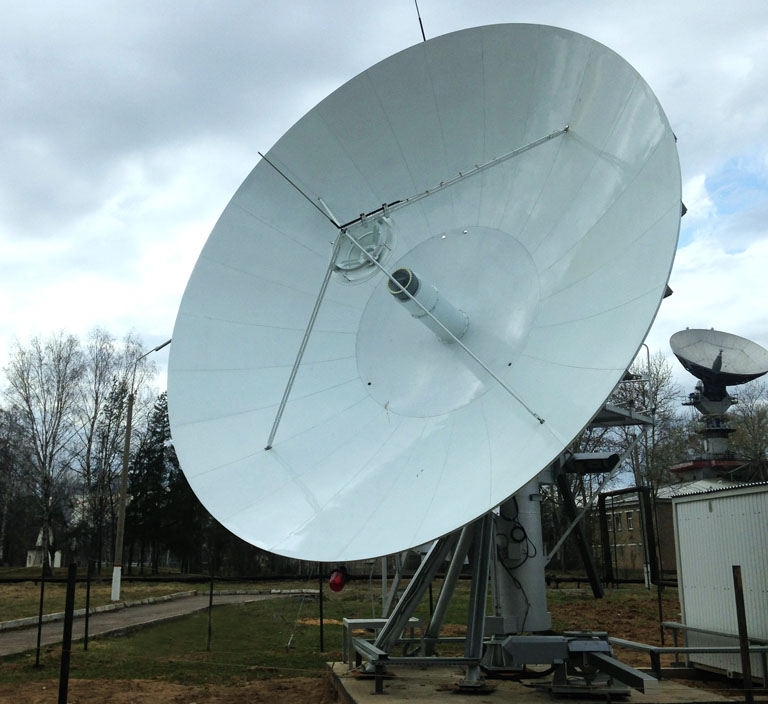

    The transceiver two-mirror antenna system is built on the Cassegrain system, includes an antenna with a 6.0 m reflector with an irradiating system and a counter-reflector, a slewing ring with electromechanical drives. The structure does not include radio rece
    ... The transceiver two-mirror antenna system is built on the Cassegrain system, includes an antenna with a 6.0 m reflector with an irradiating system and a counter-reflector, a slewing ring with electromechanical drives.
    The structure does not include radio receivers and radio transmitting devices.
