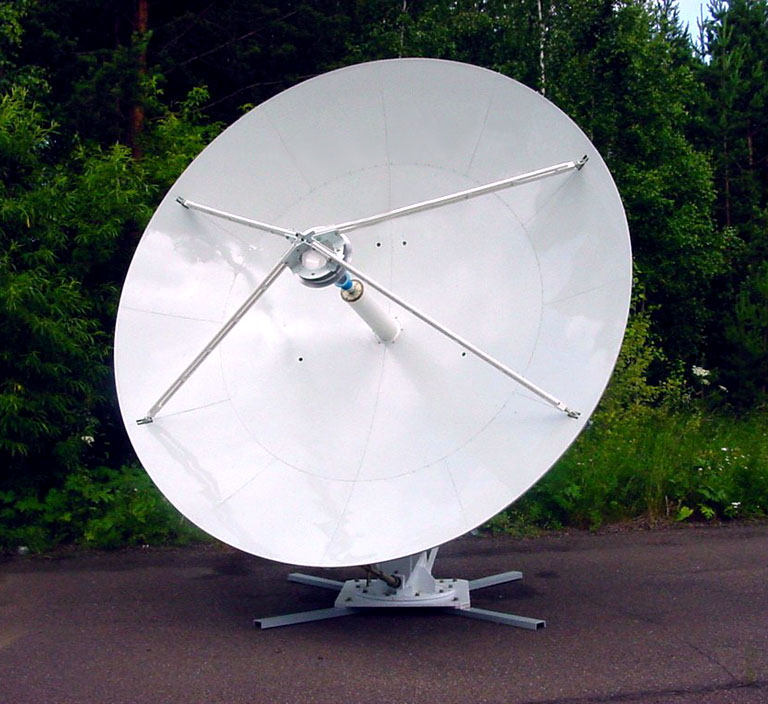

Ground Antenna System US 11 / 14-3.7

    • Ground Antenna System US 11 / 14-3.7

    Purpose:
    Designed for use as part of earth stations in satellite communications Ku-band.
    Year of release: 2009
    Guaranteed service life (years): 15 years
    Estimated production / delivery time (months): 9
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Reflector diameter 3,7 m
    Receive Frequency Range 10,95-11,7 GHz
    Transmission Frequency Range 14,0-14,5 GHz
    Polarization linear
    Receive gain ≥50,3 dB
    Transmission gain ≥52,5 dB
    Cross polarization interchange ≥30 dB
    Working angles in azimuth ± 20°
    Working angles in elevation 2° … 18°

    Description

    The transceiver two-mirror antenna system is constructed according to the Cassegrain system, includes an antenna with a 3.7 m reflector with an irradiating system and a counter-reflector, and a slewing gear with manual drives. The structure does not include r
    ... The transceiver two-mirror antenna system is constructed according to the Cassegrain system, includes an antenna with a 3.7 m reflector with an irradiating system and a counter-reflector, and a slewing gear with manual drives.
    The structure does not include radio receivers and radio transmitting devices.
