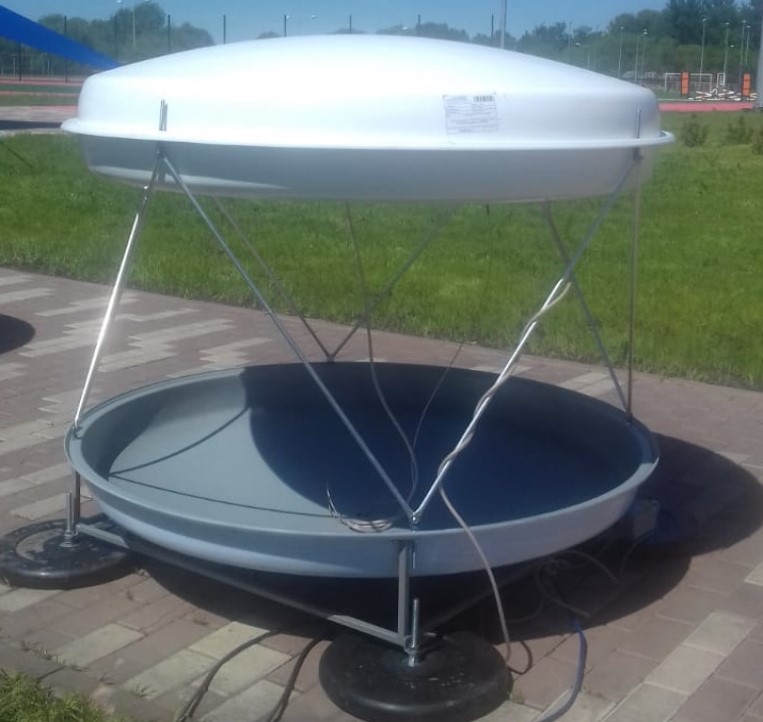

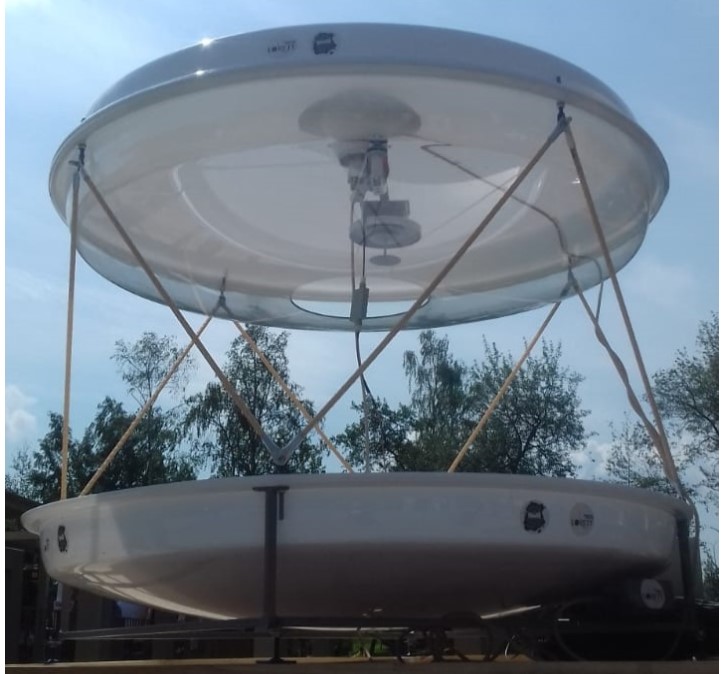

L-band Ground Station for Receiving data from Meteorological Earth Observation Satellites

    • L-band Ground Station for Receiving data from Meteorological Earth Observation Satellites

    Purpose:
    Ground receiving station is intended to recevie data from meteorological Earth observation satellites in low orbits via L-band radio channels.
    Year of release: 2018
    Guaranteed service life (years): 5
    Estimated production / delivery time (months): 5
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Antenna dish diameter, m 1.2
    Frequency band of input signal, MHz 1670 … 1710
    Speed of digital data rate, Mdps 0.25 ... 2 (BPSK) 0.5 … 4 (QPSK)
    Modulation types BPSK, QPSK
    Noise temperature of the input amplifier, ° K, not more 65
    Wind speed, m/s, maximum Operation - 20 Survival - 30
    Mass, kg, maximum 40
    Operation temperature range for devices, located outdoor; indoor, °C -40 ... +50; +10 ... +25
    Primary power supply AC 220 V ±10%, 50/60 Hz, single-phase
    Power consumption, WA, maximum 200

    Description

    Ground receiving station is designed to receive, demodulate, decode, record and process digital images of low resolution, transmitted from meteorological spacecraft in low Earth orbitsМетеор-М №2, NOAA, MetOp, FengYun-3 via L-band radio channels. The Station p
    ... Ground receiving station is designed to receive, demodulate, decode, record and process digital images of low resolution, transmitted from meteorological spacecraft in low Earth orbitsМетеор-М №2, NOAA, MetOp, FengYun-3 via L-band radio channels. The Station provides computer disk data file recording.
    Read more...
