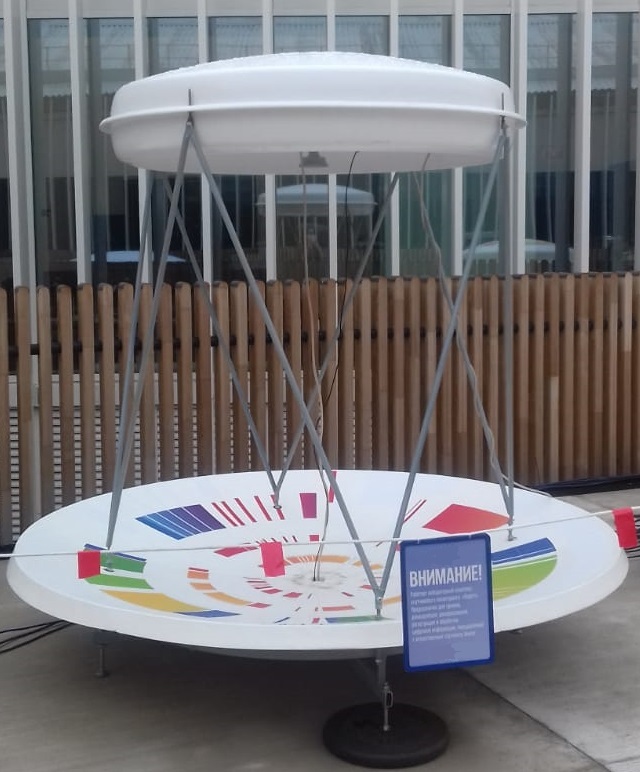

X-band Ground Station for Receiving Data from Earth Observation Satellites

    • X-band Ground Station for Receiving Data from Earth Observation Satellites

    Purpose:
    Ground receiving station is intended to recevie data from Earth observation satellites in low orbits with spatial resolution up to 1 m and better via X-band radio channels.
    Year of release: 2018
    Guaranteed service life (years): 5
    Estimated production / delivery time (months): 3
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Antenna dish diameter, m not more than 2.5 m
    Frequency band of input signal, MHz 7750 … 8500
    Range of demodulation speed, Msps 0.2-100
    Modulation types BPSK, QPSK, OQPSK, 8PSK, 16APSK, 16QAM
    Noise temperature of the input amplifier, ° K, not more 65
    Wind speed, m/s, maximum Operation - 20 Survival - 40
    Mass, kg, maximum 40
    Operation temperature range for devices, located outdoor; indoor, °C -40 ... +50; +10 ... +25
    Primary power supply AC 220 V ±10%, 50/60 Hz, single-phase
    Power consumption, WA, maximum 200

    Description

    Ground receiving station is designed to receive, demodulate, decode, record and process digital images with spatial rsolutoin up to 1 m and better, transmitted from spacecraft in low Earth orbits Terra, Aqua, Suomi NPP, JPSS, FengYun-3A/B/3C, Aist-2D, Kanopus-V and many others via X-band radio channels with the range of demodulation speeds 0.2 - 100 Msps (with option up to 350 Msps). The Station provides computer disk data file recording.
