Automated System for Launch Complex Ground Support Equipment Control

    • Automated System for Launch Complex Ground Support Equipment Control

    Purpose:
    The System is intended for remote control, monitoring and administration of the support systems functioning when LV with an Upper Stage (or without it) and a Spacecraft prelaunch preparation and launch in different modes of Launch Complex (LC) operation, as well as LV and LC equipment transferring to the initial (safe) state in case of launch abort.
    Year of release: 2004
    Guaranteed service life (years):
    at least 12 years
    Estimated production / delivery time (months): 12/6
    Flight qualification of the product: No
    Brief history of flight qualification: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Power Supply Voltage, AC, V 400/230 +18, -20 /±11,5
    AC Frequency, Hz 50
    AC Consumed Power, kW, at most 60
    Insulation Resistance, MOm, at least 20
    Ambient air temperature, °С plus 25 ±2
    Air Nominal Humidity, % up to 80
    Limit of permissible basic error of IR system (excluding sensor error), % 0.5

    Description

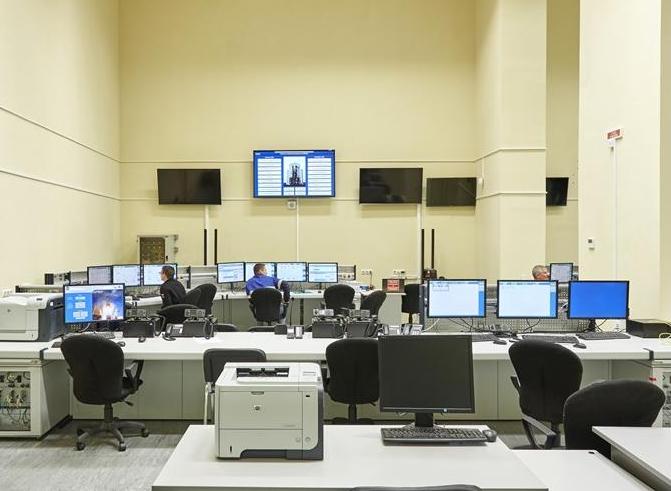

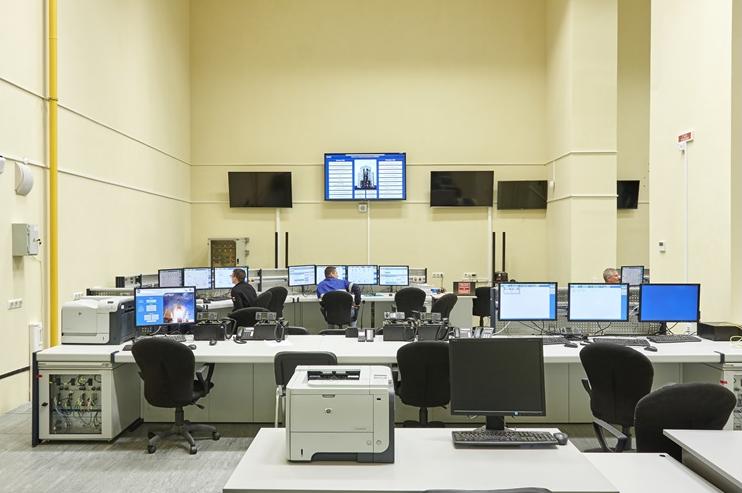

    Workshop of technical and software means intended for control automation, monitoring of the parameters and technical condition of the ground support equipment at Launch Complex.
