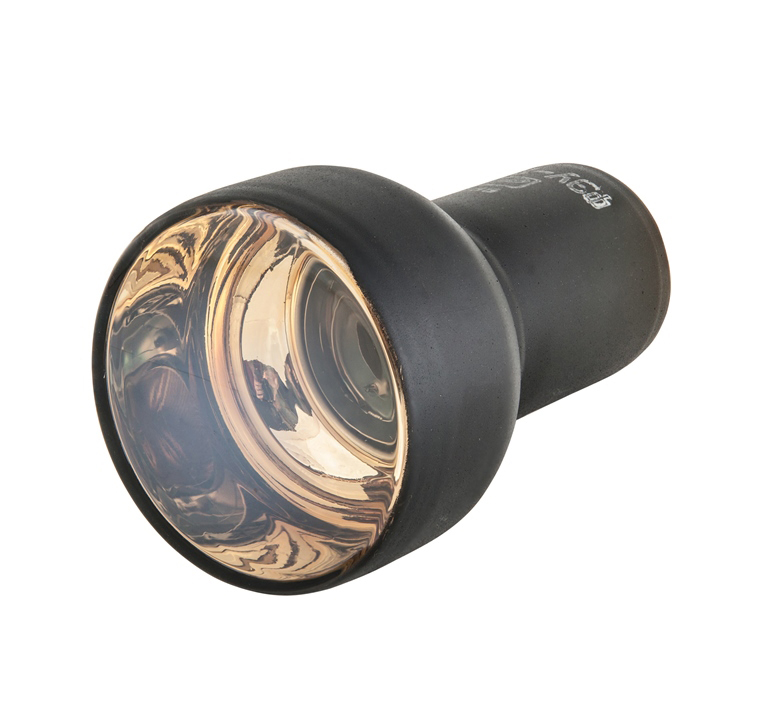

Spectrometric Photomultiplier Tube 1

    • Spectrometric Photomultiplier Tube 1

    Purpose:
    Photometry. Spectrometry. γ-radiation detection by scintillation method. Diagnostic radioisotope equipment. Ecology, biophysics, geology, geophysics, nuclear physics, high energy physics.
    Year of release: 2004
    Guaranteed service life (years): 4
    Estimated production / delivery time (months): 3
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Photocathode diameter 72 mm
    Device diameter 80 mm
    Length 125 mm
    Spectral response 300 ÷ 850 nm
    Photocathode luminous sensitivity 100 μA/lm
    Dark current ≤50 nA
    Supply voltage 1600 V
    Pulse rise time 8 ns

    Description

    PMT-183 has multialkali photo-cathode of S20 type, electron electrostatic focusing system, 12-dynode multiplication system of venetian blind type.
