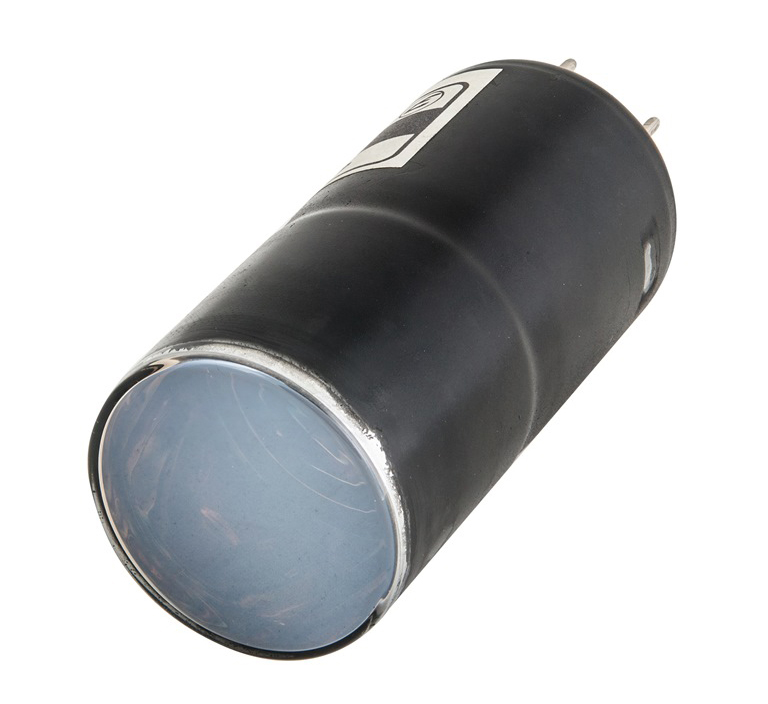

Spectrometric Photomultiplier Tube

    • Spectrometric Photomultiplier Tube

    Purpose:
    Photometry. Spectrometry. γ-radiation detection by scintillation method. Diagnostic radioisotope equipment. Ecology, biophysics, geology, geophysics, nuclear physics, high energy physics.
    Year of release: 1986
    Guaranteed service life (years): 4
    Estimated production / delivery time (months): 3
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Photocathode diameter 40 mm
    Device diameter 52 mm
    Length 120,5 mm
    Spectral response 300 ÷ 850 nm
    Photocathode luminous sensitivity 130 μA/lm
    Dark current 8 nA
    Supply voltage ≤1500 V
    Gain under normal conditions 1·105

    Description

    PMT-176 has multialkali photocathode of S20 type, electron electrostatic focusing system, 12-dynode multiplication system.
