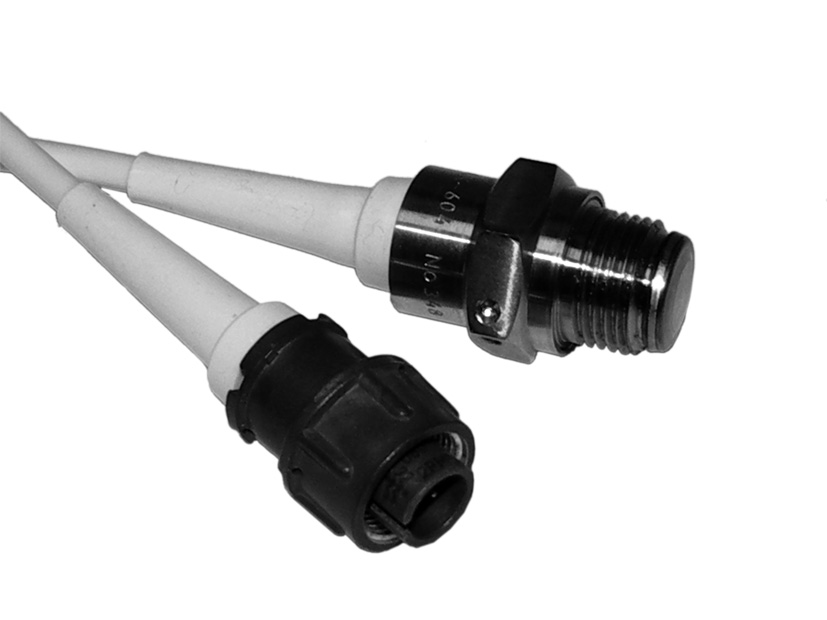

Piezoelectric Pressure Pulsation Sensor LH 604

Purpose:
Measurement of pressure pulsations of liquid and gaseous media in power plants of rocket and space technology. Works with a charge amplifier or voltage amplifier.
Estimated production / delivery time (months): 6
Flight qualification of the product: Yes


Parameter Value
Range of measurements of pressure pulsations, Mpa 0,05-5,0
The range of exposure to static pressures, Mpa 3,0-60
Conversion coefficient, mV / Pa (40±25)⋅10-5
Error,% ±10
Weight, kg 0,14

Description

Features:
- noise immunity;
- high sensitivity;
- stability of metrological characteristics under the influence of pressure, temperature, vibration.
Version: piezoelectric sensor, consisting of a sensor installed in the housing, and
... Features:
- noise immunity;
- high sensitivity;
- stability of metrological characteristics under the influence of pressure, temperature, vibration.
Version: piezoelectric sensor, consisting of a sensor installed in the housing, and a flexible cable.

Read more...
