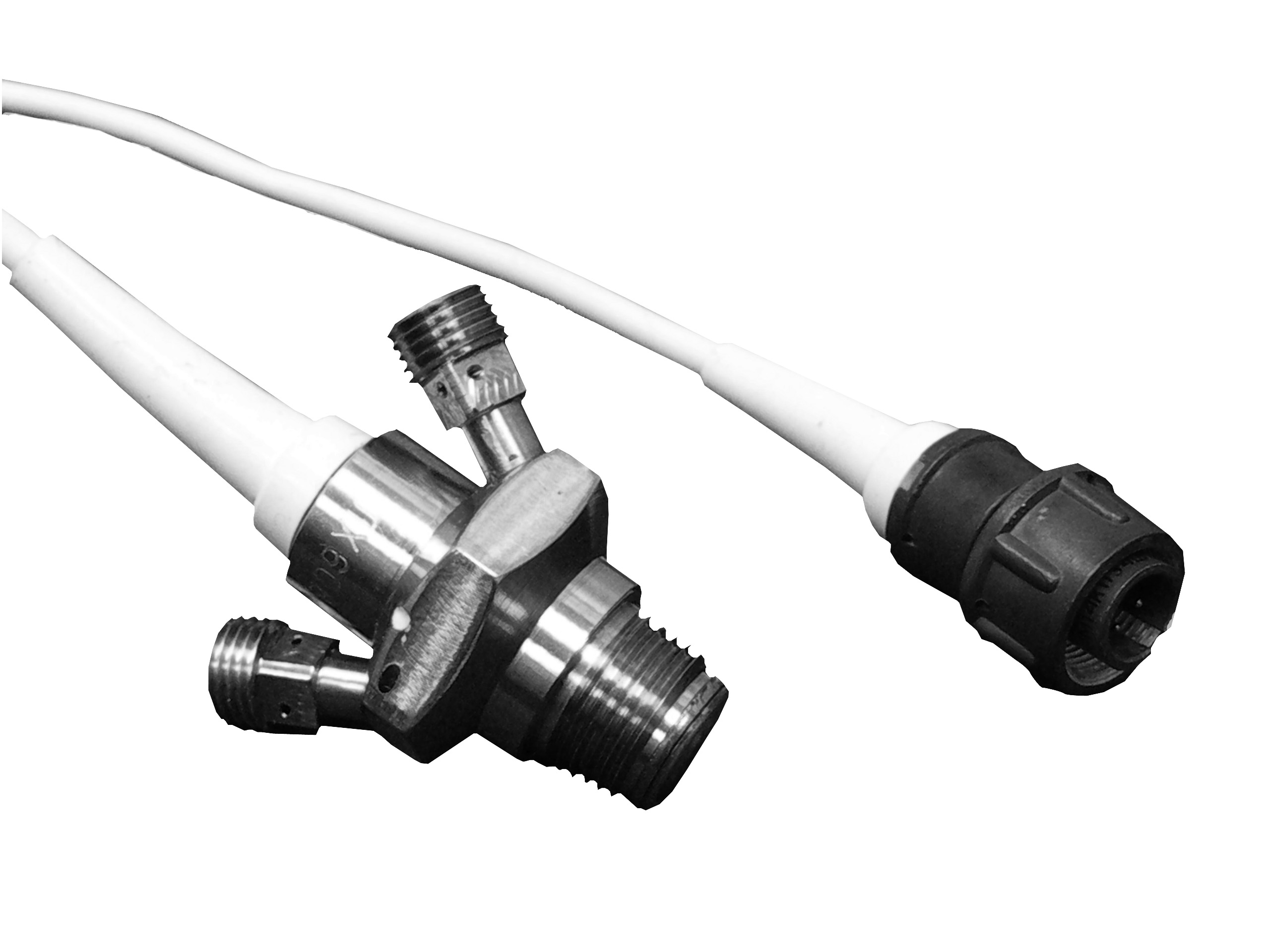

Piezoelectric Pressure Pulsation Sensor LH 608

    • Piezoelectric Pressure Pulsation Sensor LH 608

    Purpose:
    Measurement of pressure pulsations of liquid and gaseous media in power plants of rocket and space technology. Works with a charge amplifier.
    Estimated production / delivery time (months): 6
    Flight qualification of the product: Yes
    Submit application


    Parameter Value
    Range of measurements of pressure pulsations, Mpa 0,05-5,0
    The range of exposure to static pressures, Mpa 3,0-60
    Conversion coefficient, mV / Pa (40±25)⋅10-5
    Error,% ±10
    Weight, kg 0.19

    Description

    Features:
    - high temperature sensor;
    - high sensitivity;
    - noise immunity;
    - mechanical reliability when exposed to vibration, shock.
    Version: forced-cooling piezoelectric sensor, consisting of a sensor installed in the housi
    ... Features:
    - high temperature sensor;
    - high sensitivity;
    - noise immunity;
    - mechanical reliability when exposed to vibration, shock.
    Version: forced-cooling piezoelectric sensor, consisting of a sensor installed in the housing and a flexible cable.
    Read more...
