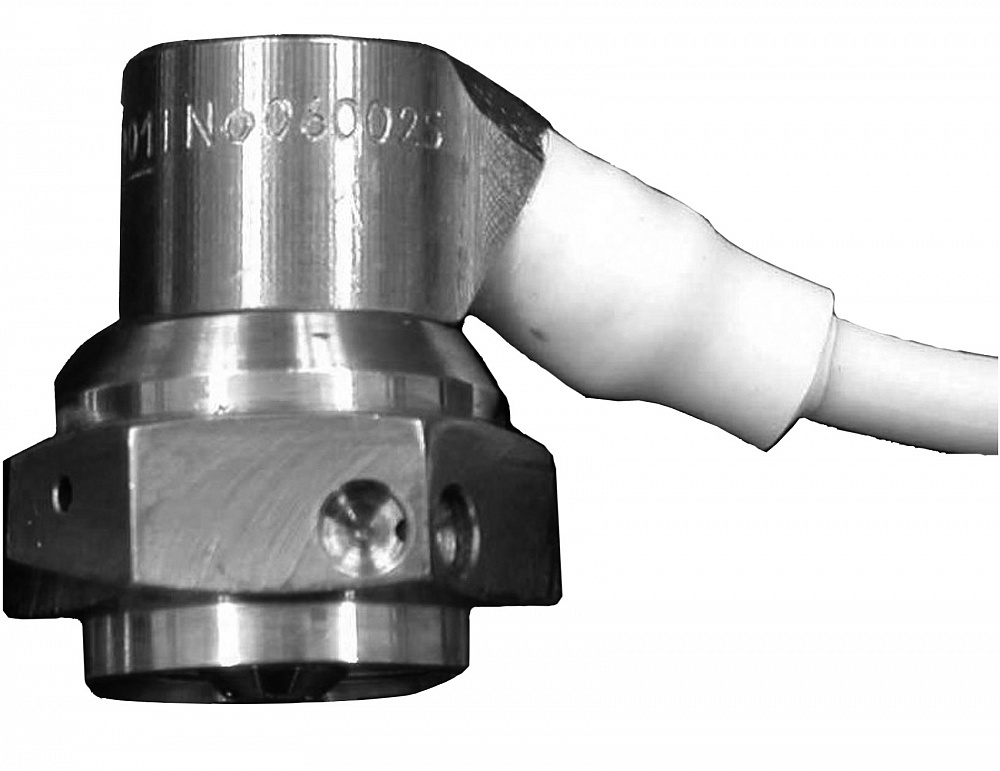

Pressure Sensor Vt 212 A.1

Purpose:

Measurement of the static-dynamic pressure of liquid and gaseous aggressive and non-aggressive media in control systems and diagnostics of liquid rocket engines. Works with the converter Vt 5509 or Vt 5510, Vt 5514.

Estimated production / delivery time (months): 6

Flight qualification of the product: Yes

Possibility to adapt the product to customer requirements: Yes

Parameter	Value
Range of measurements, Mpa	0-2,8; 0-4; 0-5,6; 0-8; 0-11; 0-16; 0-22; 0-30; 0-45; 0-60; 0-90; 0-125
The basic reduced error,%	0,6
Nominal output signal Un, mV	9
Supply voltage	6±1,2
Weight, kg, not more	0,12

Description

Feature: - high stability of metrological characteristics during operation under the influence of unsteady temperatures of the measured and the environment, exposure to large levels of vibration, shock and other external factors; - manufactured according t

... Feature:
- high stability of metrological characteristics during operation under the influence of unsteady temperatures of the measured and the environment, exposure to large levels of vibration, shock and other external factors;
- manufactured according to the "Regulation 98".
Version: thin-film strain gauge sensor with cable jumper. At the request of the customer (in the absence of temperature control of the sensor on the product) it is manufactured with a heat-receiving sleeve. The type of explosion protection of the sensor is “Tight sheath”, cable jumper - “Intact cable network”.
