Pressure Sensor Frequency Vt 1201

Purpose:

Measurement of excess static pressure and pressure that builds up with a gradient of up to 1000 MPa / s (it is possible to apply pressure pulsations in the frequency range 0-500 Hz with an amplitude of not more than 0.05 pH when measuring pressure from 0.5 to 60 MPa and not more 4 MPa when measuring pressures from 90 to 180 MPa), liquid and gaseous aggressive and non-aggressive media. It works autonomously and with a LH 5564 or Vt 7613 converter. It is used in telemetry systems of rocket and space technology.

Estimated production / delivery time (months): 6

Flight qualification of the product: Yes

Possibility to adapt the product to customer requirements: Yes

Parameter	Value
Range of measurements (0-Rn), Mpa	0-0,5; 0-1; 0-2; 0-4; 0-5,6; 0-8; 0-16; 0-22; 0-30; 0-45; 0-60; 0-90; 0-125; 0-180
Error,%, not more	0,5
Output signal, kHz	14,4-22,8
Consumption current, mA, not more	50
Weight, kg	0,3

Description

Features: - high precision; - noise immunity; - manufactured according to the "Regulation 98". Version: string converter (SC) and amplifier (A) connected by an integral cable jumper 0.5 m long. Cable jumper sheath TKR tube or steel 12X18H10T (depending

... Features:
- high precision;
- noise immunity;
- manufactured according to the "Regulation 98".

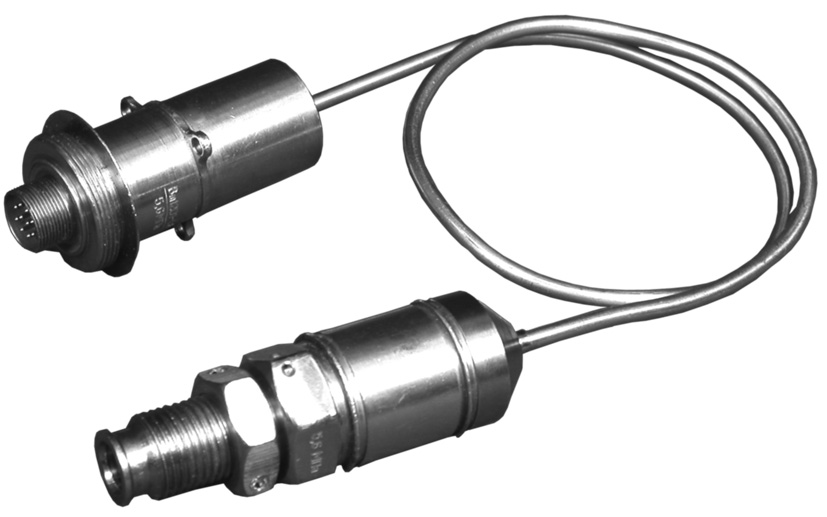

Version: string converter (SC) and amplifier (A) connected by an integral cable jumper 0.5 m long. Cable jumper sheath TKR tube or steel 12X18H10T (depending on order). Explosion protection type - “Tight sheath”, cable jumper - “Intact cable network” or “Tight sheath” (depending on order).
