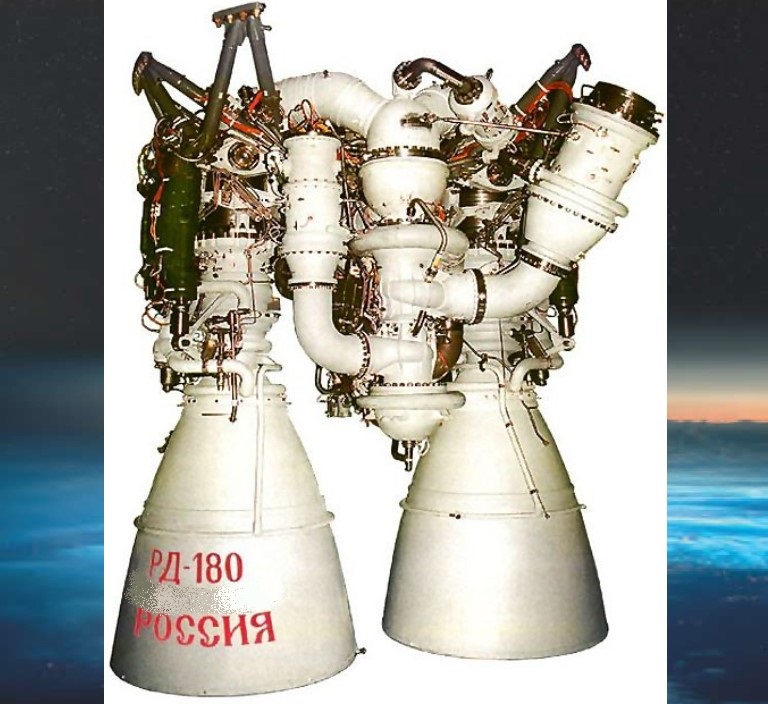

RD-180

    • RD-180

    Purpose:
    Engines for the first stage of the Atlas launch vehicle family.
    Year of release: 1999
    Guaranteed service life (years): 10
    Estimated production / delivery time (months): 18
    Flight qualification of the product: Yes
    Brief history of flight qualification:
    Completed 6 launches of LV "Atlas 3" and 80 launches of LV "Atlas 5" (01.09.2019).
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Thrust, earth / void, tf 390/423
    Specific impulse, earth / void, s 311 / 339
    Pressure in the combustion chamber, kgf / cm2 261.7
    Weight, dry / dipped, kg 5480/5950
    Dimensions height / diameter, mm 3600 / 3200
    Development period 1994-1999
    Thrust vector control by swinging cameras in the same plane, o 8
    Thrust range,% 100-47

    Description

    Liquid rocket engine with afterburning of oxidizing gas. Fuel: oxygen + kerosene. Winner of the competition for the development and supply of the engine for the first stage for the PH of the Atlas family of the American company ULA. More than 260 tests were
    ... Liquid rocket engine with afterburning of oxidizing gas.
    Fuel: oxygen + kerosene.
    Winner of the competition for the development and supply of the engine for the first stage for the PH of the Atlas family of the American company ULA.
    More than 260 tests were carried out with a total operating time of more than 50,000 s.
    Certified for 10 modifications of the Atlas launch vehicle.
    Read more...

    Remark

    Engine operating time in 86 flights is more than 20,000 s. (01.09.2019).
