Sensor of Rapidly Varying Pressure 612M

    • Sensor of Rapidly Varying Pressure 612M

    Purpose:
    Measurement of rapidly varying pressures of liquid and gaseous aggressive and non-aggressive media in power plants of rocket and space technology. Works with a charge amplifier or voltage amplifier.
    Estimated production / delivery time (months): 6
    Flight qualification of the product: Yes
    Submit application


    Parameter Value
    Range of measurements of rapidly varying pressures, Mpa 0,045-5,6
    Range of influence of slowly varying pressures, Mpa 2,8-63
    Sensitivity, mV / Pa, not less 16⋅10-5
    Error,% ±12
    Weight, kg 0,12

    Description

    Features: - high temperature sensor; - noise immunity; - mechanical reliability when exposed to vibration, shock, temperature. Version: forced-cooling piezoelectric sensor, consisting of a sensor installed in the housing and a flexible cable. Type of pr
    ... Features:
    - high temperature sensor;
    - noise immunity;
    - mechanical reliability when exposed to vibration, shock, temperature.

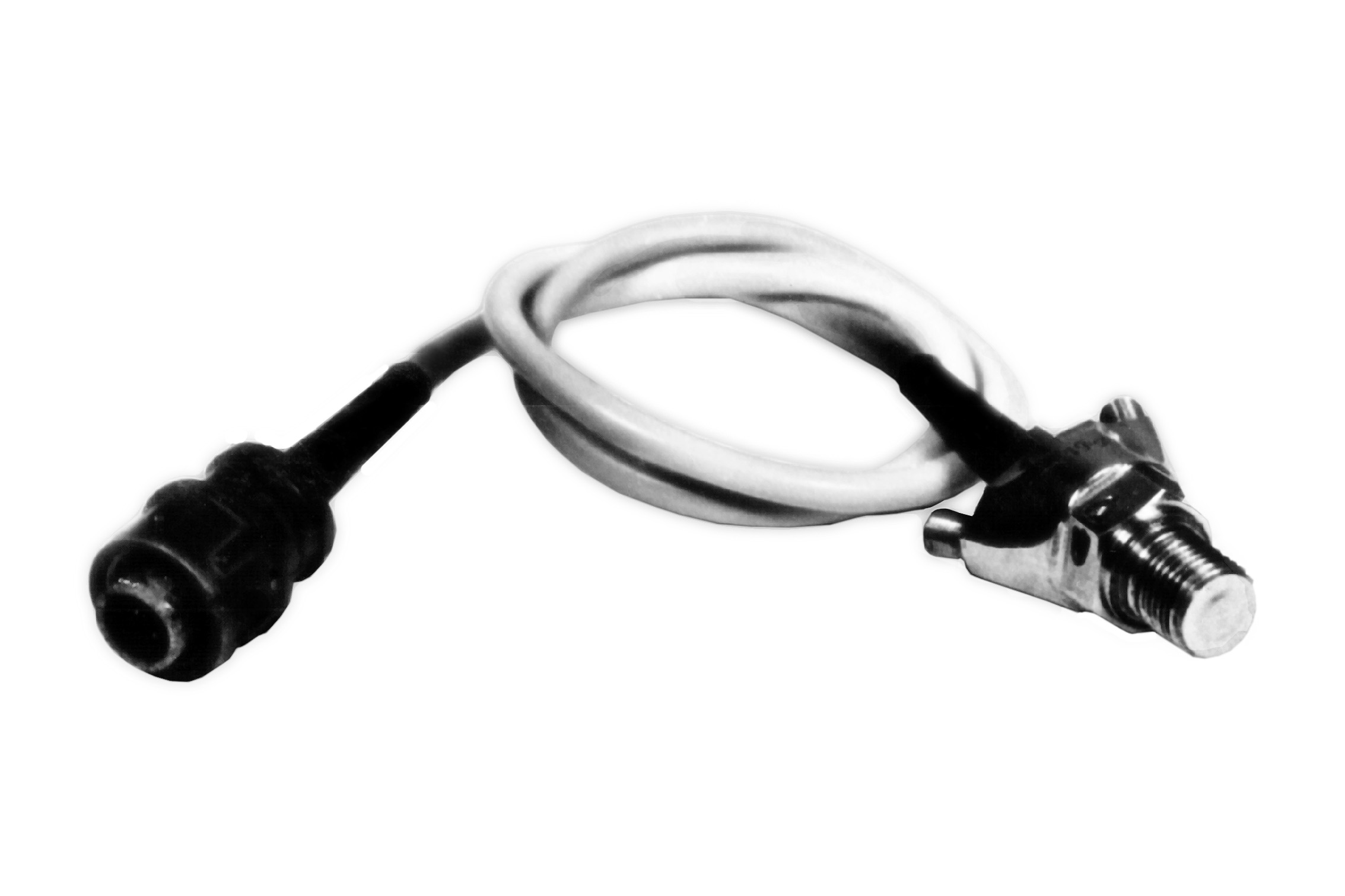

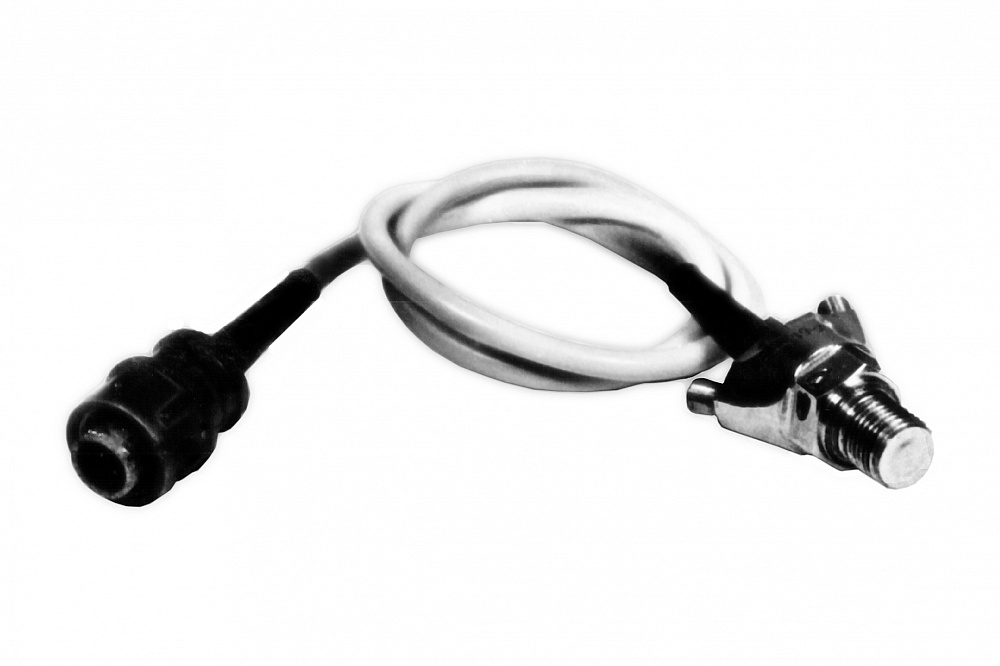

    Version: forced-cooling piezoelectric sensor, consisting of a sensor installed in the housing and a flexible cable. Type of protection - “Intrinsically safe electrical circuit” - is provided by an intermediate converter.
    Read more...
