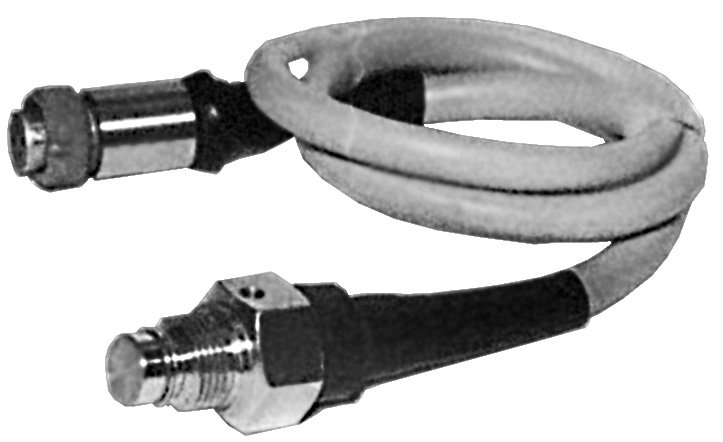

Sensor of Rapidly Varying Pressures 611M

    • Sensor of Rapidly Varying Pressures 611M

    Purpose:
    Measurement of rapidly varying pressures of liquid and gaseous non-aggressive media in power plants and pneumohydrosystems of space rocket technology. Works with a charge amplifier or voltage amplifier.
    Estimated production / delivery time (months): 6
    Flight qualification of the product: Yes
    Submit application


    Parameter Value
    Range of measurements of rapidly varying pressures, Mpa 0,045-5,6
    Range of influence of slowly varying pressures, Mpa 4,0-63
    Sensitivity, mV / Pa, not less 20⋅10-5
    Error,%, not more ±10
    Weight, kg 0,1

    Description

    Features: - noise immunity; - stability of metrological characteristics under the influence of pressure, temperature, vibration. Version: piezoelectric sensor, consisting of a sensor installed in the housing, and a flexible cable. Type of protection - “I
    ... Features:
    - noise immunity;
    - stability of metrological characteristics under the influence of pressure, temperature, vibration.
    Version: piezoelectric sensor, consisting of a sensor installed in the housing, and a flexible cable. Type of protection - “Intrinsically safe electrical circuit” - is provided by an intermediate converter.
