L-Band Microwave Discrete Attenuator

    • L-Band Microwave Discrete Attenuator

    Purpose:
    Construction of radio transceivers.
    Year of release: 2014
    Guaranteed service life (years): 3
    Estimated production / delivery time (months): 10
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    W*H*T 6.35*6.35*1 mm
    Weight 1 g
    Supply voltage 5.0±0.15 V
    Operating temperature range -60 - +85 C°
    Digital Supply Voltage 2.5 В ± 0,15 V
    Case 5130.16.АН3
    Consumption current 0.05 А
    Clock frequency 100…1550 MHz
    Amplitude Adjustment Range 31.5 dB
    Gear ratio 3 dB
    Noise figure 7 dB
    Input Compression Point -5 dBm

    Description

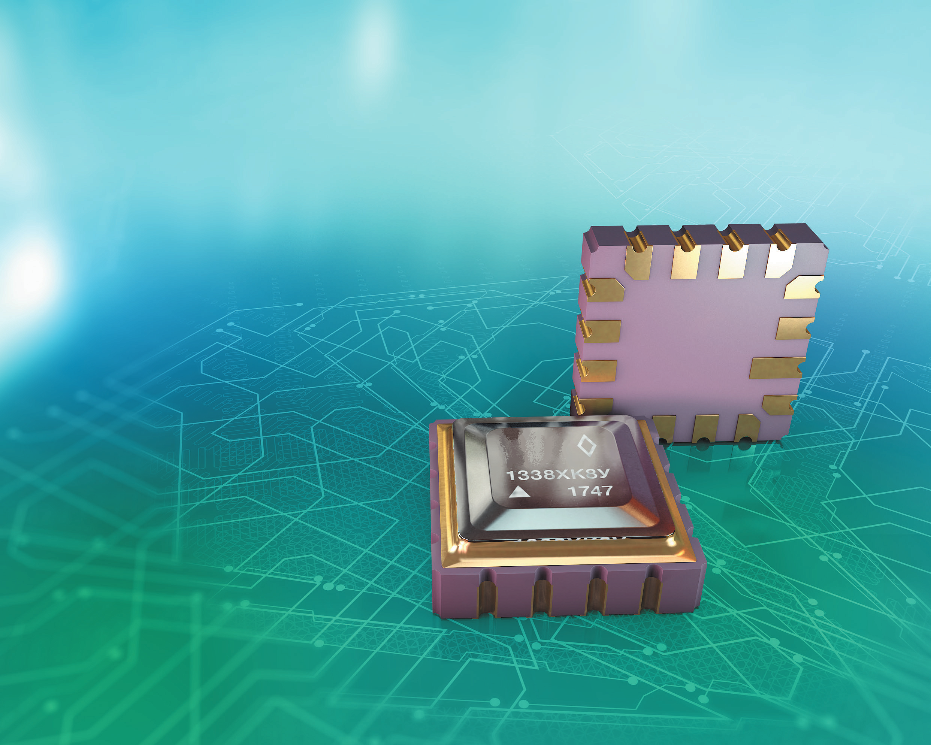

    Attenuator (ATT) is designed to control the amplitude of the input signals of the L-band. The MMIC is developed on the basis of silicon-germanium BiKMOS technology. MMIC ATT is a parallel-serial chain of resistive blocks, switched using MOS keys. An amplifier
    ... Attenuator (ATT) is designed to control the amplitude of the input signals of the L-band. The MMIC is developed on the basis of silicon-germanium BiKMOS technology.
    MMIC ATT is a parallel-serial chain of resistive blocks, switched using MOS keys. An amplifier has been added to the circuit to obtain a positive transfer coefficient.
    The switching of the ATT states is carried out by a control circuit included in the MMIC, in parallel with a 6-bit code
    MMIC ATT is intended for L-band radio equipment, including:
    - satellite communications and navigation,
    - radar equipment.
