L-band Microwave Discrete Phase Shifter

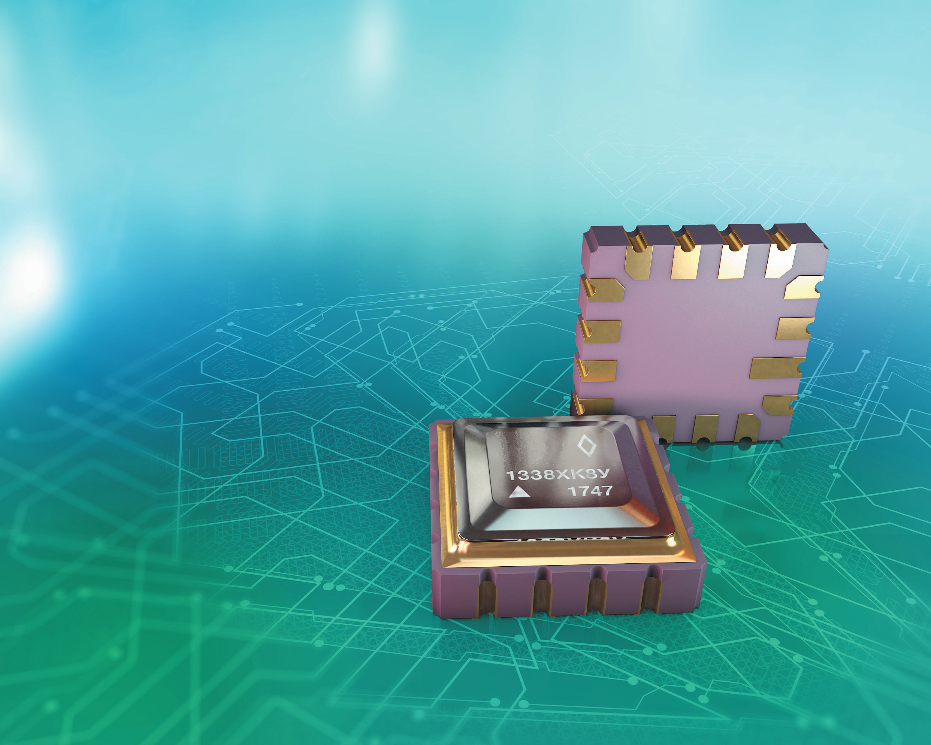

    • L-band Microwave Discrete Phase Shifter

    Purpose:
    Construction of radio transceivers.
    Year of release: 2014
    Guaranteed service life (years): 3
    Estimated production / delivery time (months): 10
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    W*H*T 5*5*1 mm
    Weight 2 g
    Supply voltage 5±0,15 V
    Operating temperature range -60 - +85 C°
    Digital Supply Voltage 5±0,15 V
    Case 5130.16-АН3 (metal-ceramic)
    Consumption current 0,07 А
    Gear ratio 5 dB
    Noise figure 11 dB
    Input Compression Point -17 dBm
    Operating frequency range 0,1…1,55 GHz
    PS discretion, bit 6
    Signal Levels 0…2,0 V
    Phase Adjustment Range 354 C°

    Description

    Application of the chip: MMIC PS type is designed for civil and special L-band radio equipment of satellite communications and navigation, radar equipment, household appliances. Short description of the chip: MMIC phase shifter (PS) controls the phase of th
    ... Application of the chip:
    MMIC PS type is designed for civil and special L-band radio equipment of satellite communications and navigation, radar equipment, household appliances.
    Short description of the chip:
    MMIC phase shifter (PS) controls the phase of the input signals of the L-band. MIS is developed on the basis of silicon-germanium BiKMOS technology.
    The basis of the MIS FV circuit design is the vector addition of orthogonal signals.
    MMIC has differential inputs and outputs. Phase states are controlled by a parallel 6-bit code supplied to a non-linear current DAC. MMIC PS allows you to set the phase state with high accuracy while maintaining low power consumption.
    Read more...
