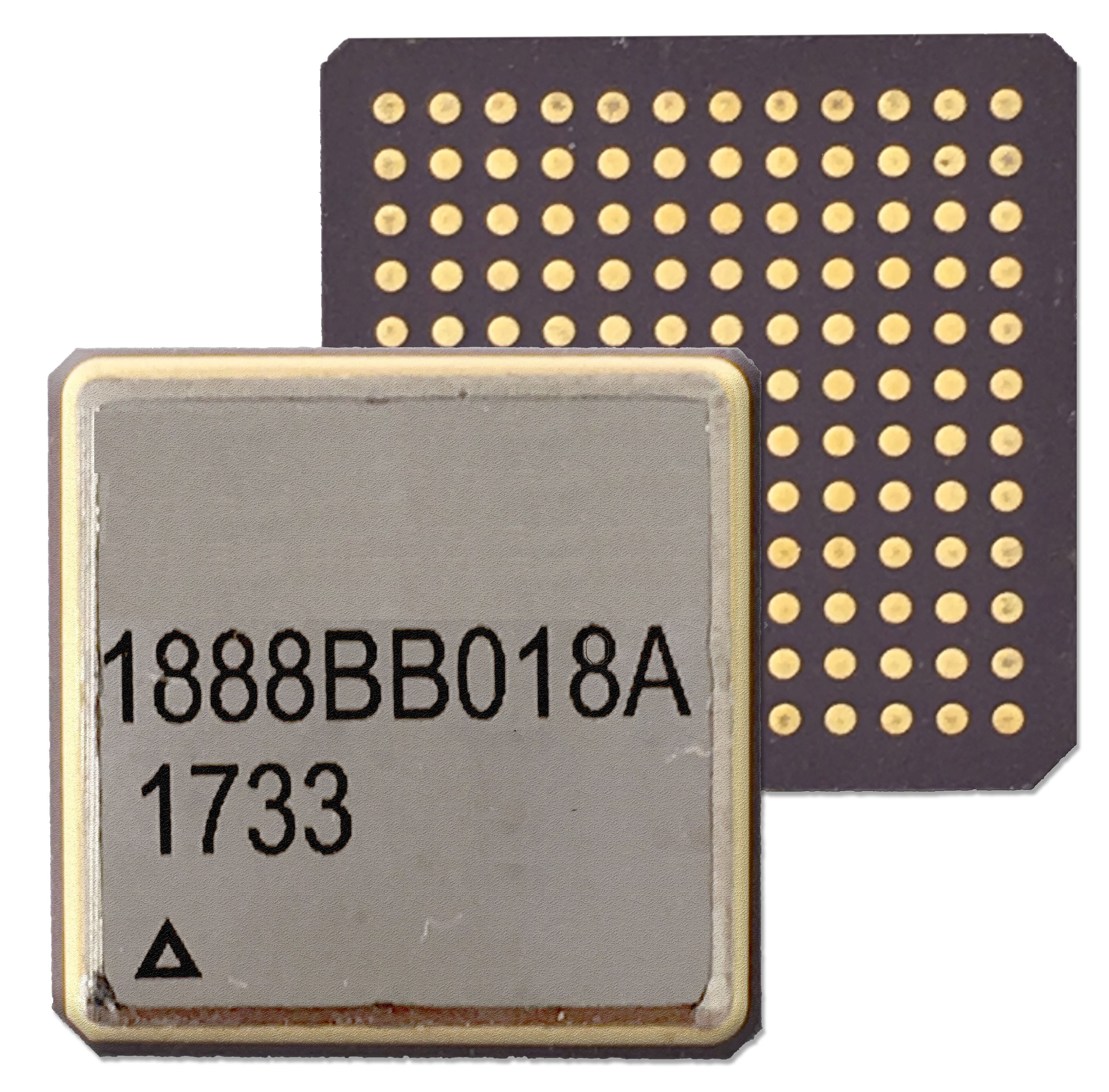

PCI Express Chip 1888 BB 018 A

    • PCI Express Chip 1888 BB 018 A

    Purpose:
    Expanding the functionality of interface modules and devices by supporting the high-speed PCI Express standard.
    Submit application


    Parameter Value
    Type of shell МК8306-144-1
    Supply voltage
    I / O buffers – 1.8 V to 3.3 V;
    cores: 1,25 V;
    I / O blocks: 1,2 V;
    clock generation circuits: 1,25 V;
    level offset circuits and calibration circuits: 3,3 V
    Dynamic current consumption for the power circuit
    UDDD1: 3.5 mA;
    UDDA2: 15 mA;
    UDDD2: 320 mA;
    UDDD3: 30 mA;
    UDDA1: 85 mA;
    UDD: 50 mA;
    Working temperature, °C -60 +85
    Technology CMOS 130 nm
    Type of acceptance 5

    Description

    The PCI Express physical interface device chip that supports the protocol and electrophysical interface requirements of the PCI Express ™ Base Specification Revision 1.1.
