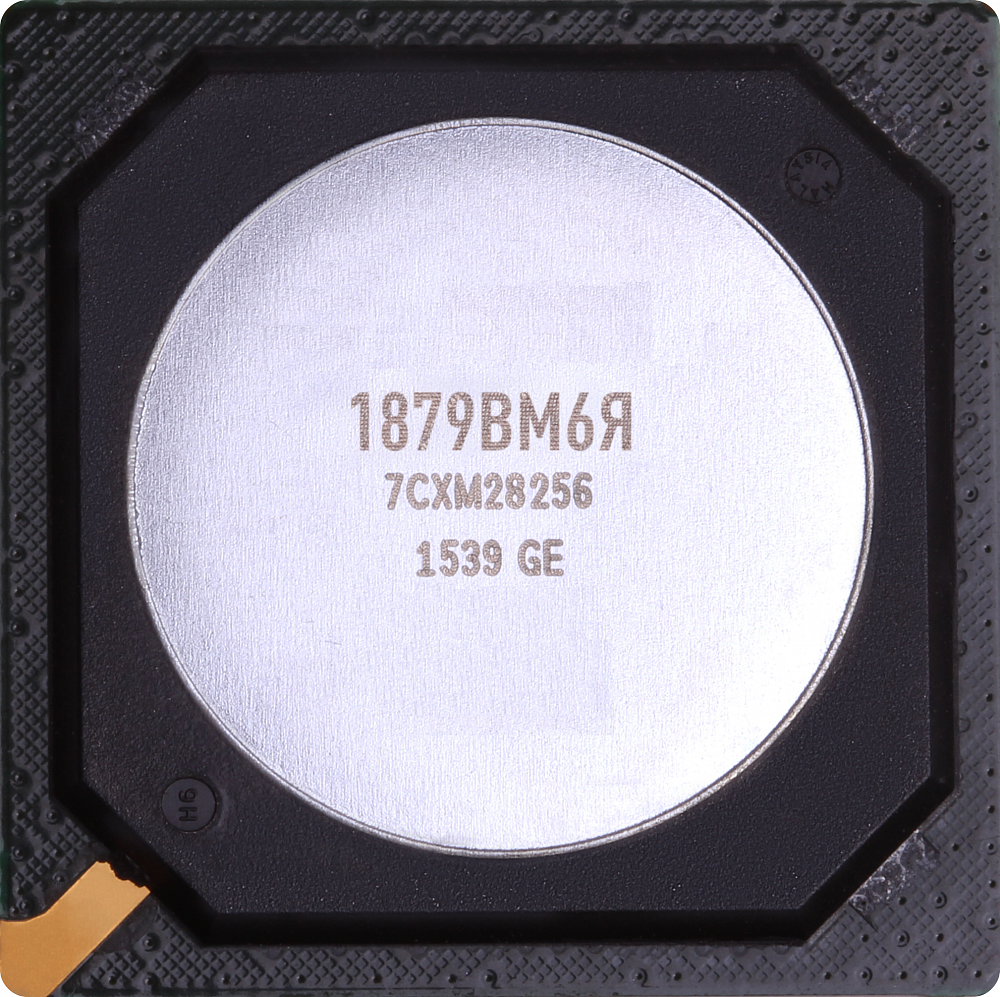

Digital signal Processor 1879 ВМ 6Y

    • Digital signal Processor 1879 ВМ 6Y

    Purpose:

    - processing of broadband radar signals, including various types of digital filtering, Fourier, Hadamard transforms and others;

    - image processing (including various types of filtering and MPEG encoding and decoding);

    - navigation;

    - high-performance signal switching;

    - CDMA and TDMA base stations of cellular communication.

    Submit application


    Parameter Value
    Type of shell HSBGA-544L
    Supply voltage
    cores – 1,0 V;
    peripherals CMOS – 3,3 V;
    peripherals SSTL – 1,8 V

    Leakage current
    low level at the input of the CMOS buffer: 10 μA (UIL = 0 V, UCC1 = 3.6 V);
    high level at the input of the CMOS buffer: 10 μA (UIL = 3.6 V, UCC1 = 3.6 V);
    low level at the input of the SSTL buffer: 10 μA (UCC2 = 1.95V);
    high level input SSTL buffer: 10 μA (UCC2 = 1.95V)

    Working temperature, °C -45 +85
    Technology CMOS 90 nm
    Type of acceptance 5
    Frequency 500 MHz

    Description

    High performance digital signal processor. The processor architecture is based on the use of the new generation VLIW / SIMD processor core NMC4. The processor contains two processor cores NMPU0 and NMPU1, each of which includes a RISC processor and a vector co
    ... High performance digital signal processor. The processor architecture is based on the use of the new generation VLIW / SIMD processor core NMC4. The processor contains two processor cores NMPU0 and NMPU1, each of which includes a RISC processor and a vector coprocessor. The first 64-bit coprocessor is designed to perform vector-matrix operations on integer data of variable length from 1 to 64 bits. The second 64-bit coprocessor is for floating-point vector operations.
    Read more...
