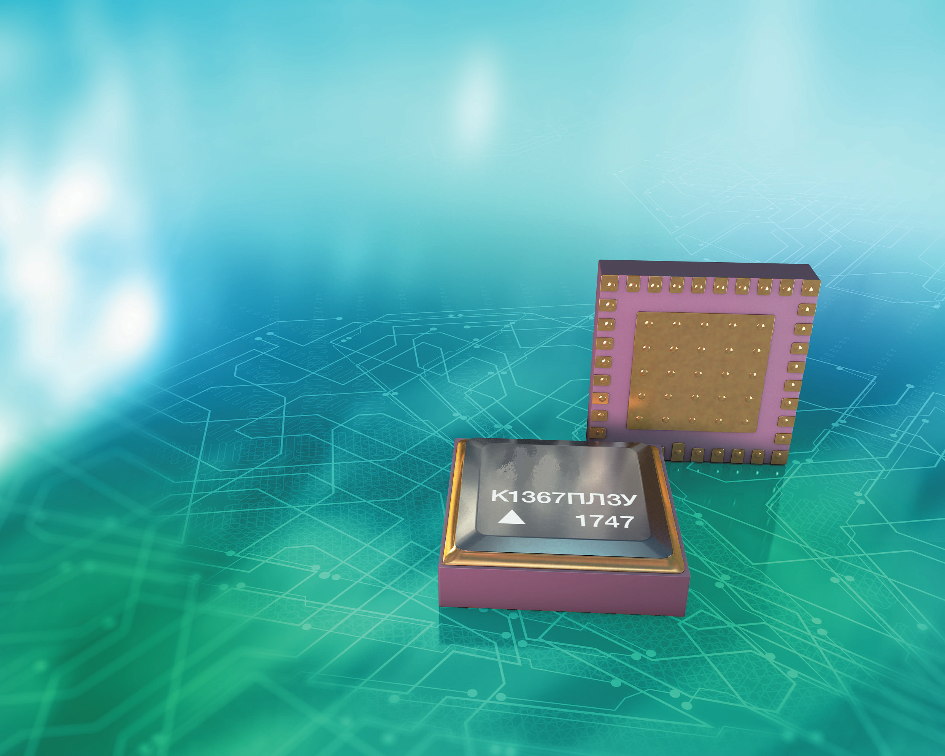

Microwave LSI Frequency Synthesizer with VCO

    • Microwave LSI Frequency Synthesizer with VCO

    Purpose:
    Construction of radio transceivers.
    Year of release: 2014
    Guaranteed service life (years): 3
    Estimated production / delivery time (months): 10
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    W*H*T 5*5*1 mm
    Weight 2 g
    Supply voltage 3±0,3 V
    Operating temperature range -40 - +85 C°
    Digital Supply Voltage 2,25…2,75 V
    Case 5102.32-1К (5th type in accordance with GOST 17467-88)
    Consumption current 0,04…0,055 А
    Output frequency 0,375…6,0 GHz
    Programmable division modes of the preliminary divider 8/9, 16/17, 32/33
    Output power -15…-5 dBm
    Maximum reference frequency 0,25 GHz
    Current output current switch 0,24…3,84 mA
    In-loop phase noise level -212…-205 dBm

    Description

    Application of the chip: - broadband communication systems GSM, WiMAX, WLAN, DVB-T/S/H, CDMA; - radar, electronic warfare, state recognition, navigation; - communication ground, aviation, satellite measuring equipment. Short description of the chip: Silic
    ... Application of the chip:
    - broadband communication systems GSM, WiMAX, WLAN, DVB-T/S/H, CDMA;
    - radar, electronic warfare, state recognition, navigation;
    - communication ground, aviation, satellite measuring equipment.
    Short description of the chip:
    Silicon-Germanium BiKMOS VLSI is designed to produce a stable high-frequency signal in the 375-6000 MHz range with a low level of phase noise and a small tuning step without using an external VCO.
    Functional Analog: ADF4350 (Analog Devices Inc.)
    Main technical specifications:
    - integrated voltage-controlled broadband generator (VCO);
    - programmable current key current;
    - output control multiplexer;
    - 3-wire serial bus control.
