Single-part and Small-scale Production of Ceramic Modules

    • Single-part and Small-scale Production of Ceramic Modules

    Purpose:
    Applied for manufacturing radioelectronic modules with 3D topology as well as modules operating within microwave ranges.
    Year of release: 2013
    Guaranteed service life (years):
    Depends on product requirements.
    Estimated production / delivery time (months):
    Based on the degree of product complexity.
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Maximum module size, mm 100х100
    Minimum conductor size, µm 120
    Minimum conductor to conductor clearance, µm 120

    Description

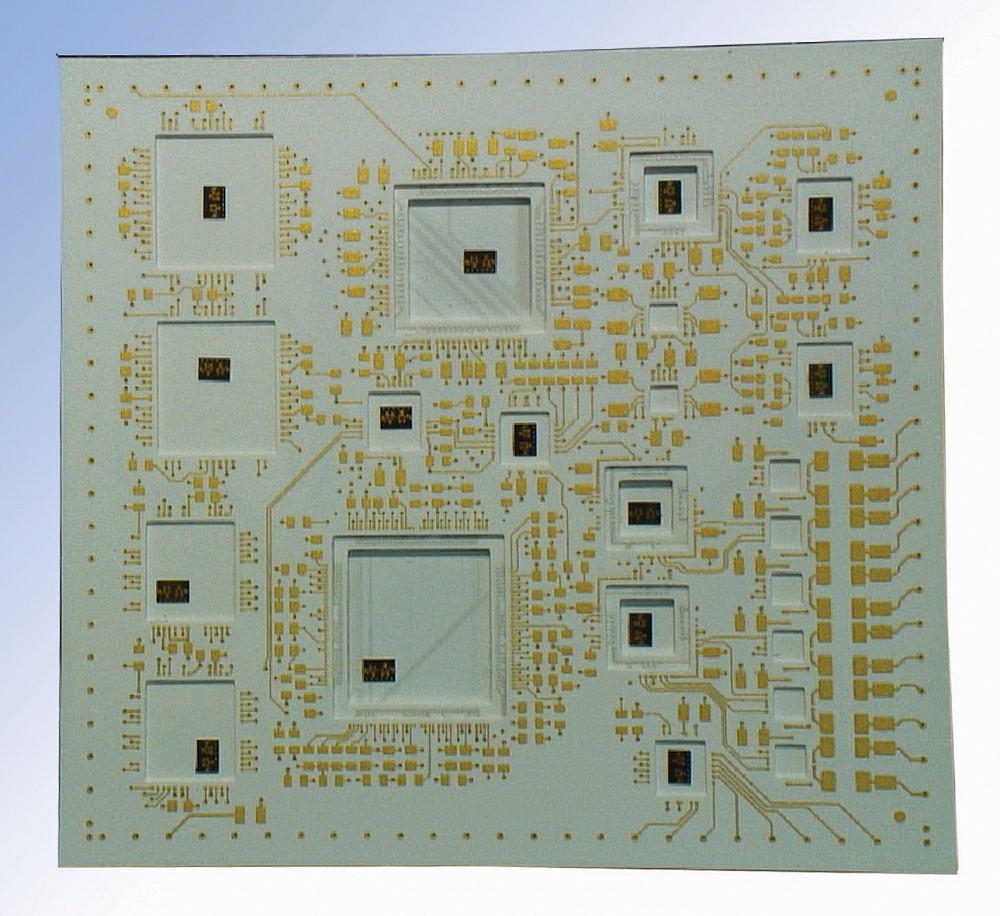

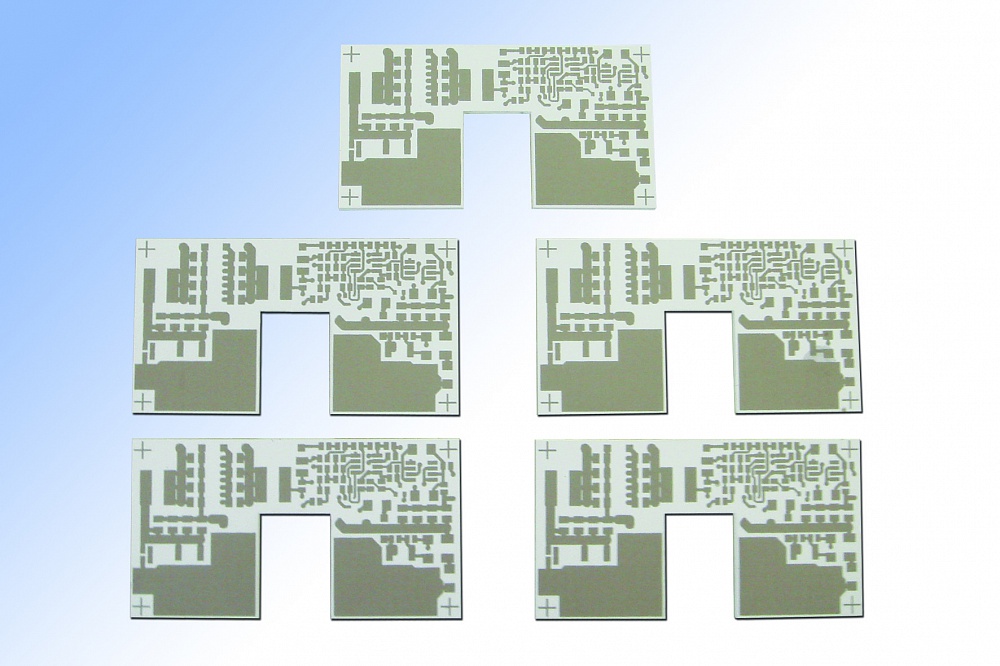

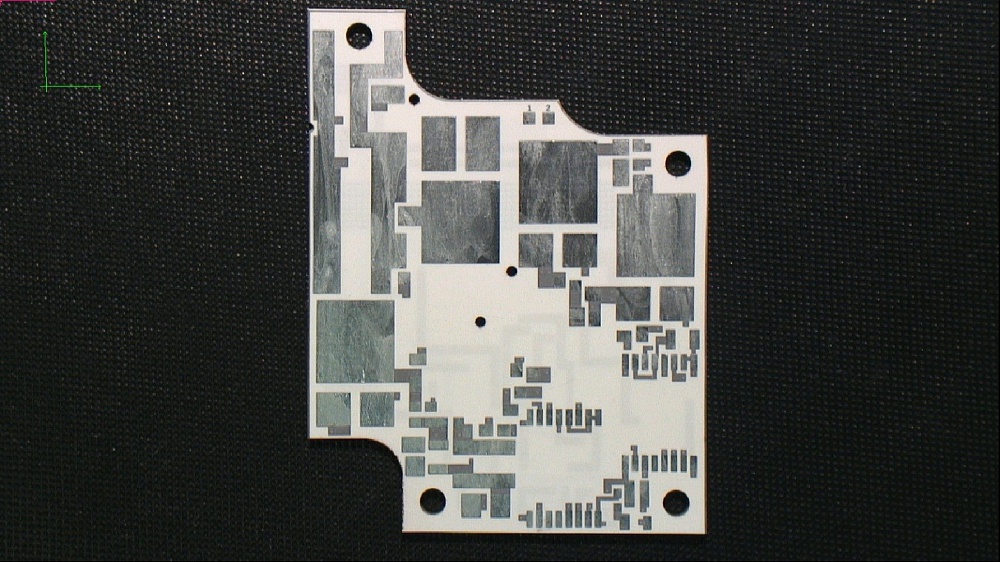

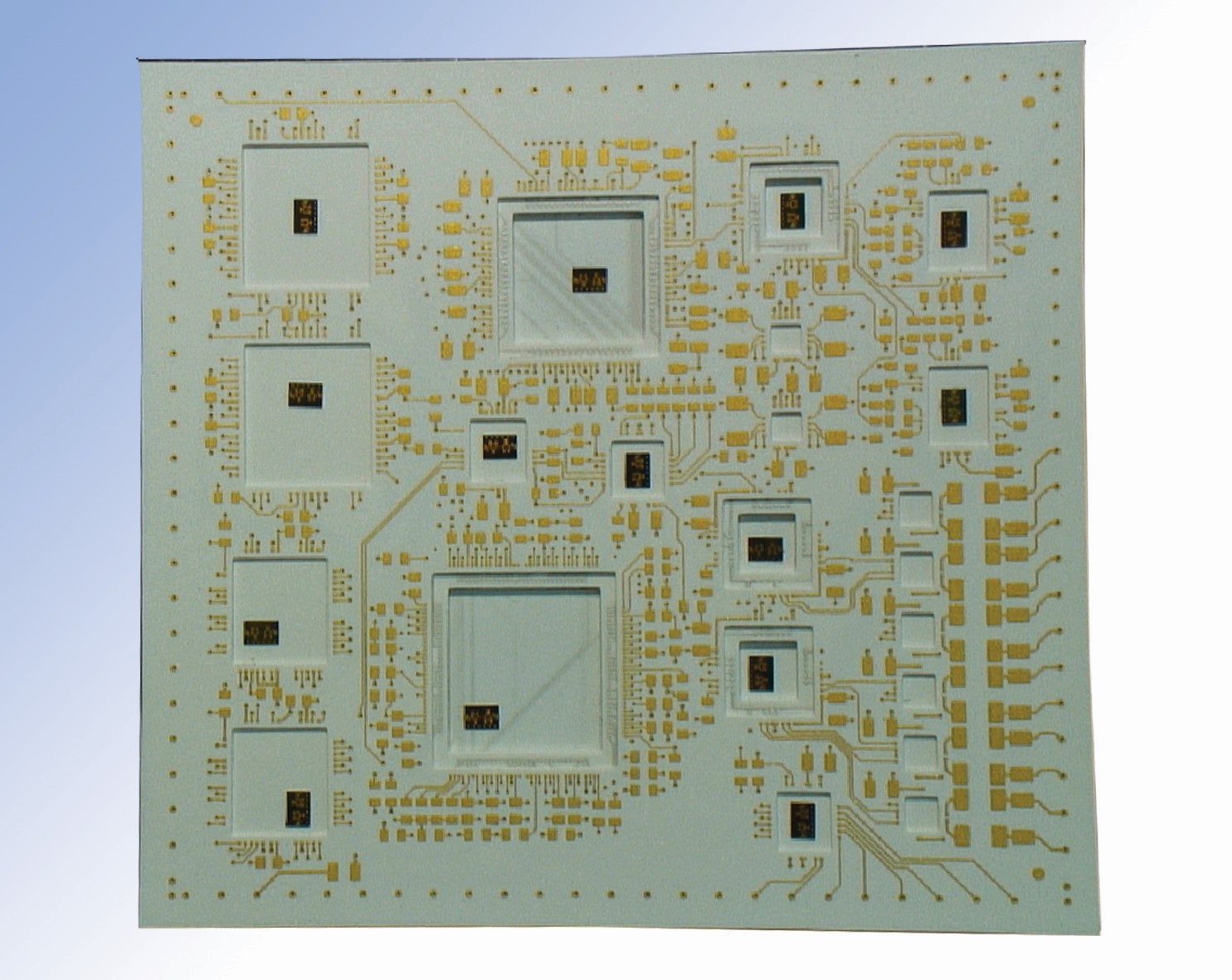

    Manufacturing of ceramic modules in accordance with LTCC-technology.
