Air Bearing (35 kg)

    • Air Bearing (35 kg)

    Purpose:
    Air bearing with adjustable detent is a zero gravity simulator; it provides the movement with 3 degrees of freedom.
    Year of release: 2009
    Guaranteed service life (years): _
    Estimated production / delivery time (months): 5
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    Max carrying capacity, kg 35
    Angle of turn relative to vertical axis not limited
    Angle of turn relative to horizontal axes ±30°

    Description

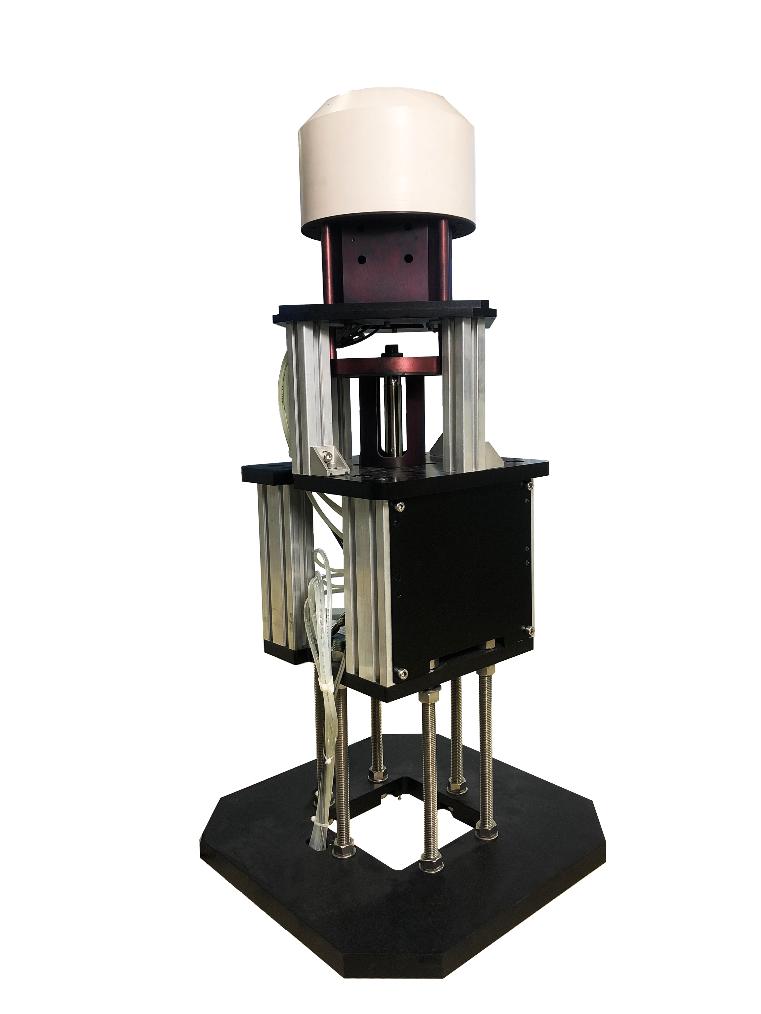

    Rotates through 360° along one axis (vertical), the possibility of rotation in two horizontal axises is limited. Air bearing consists of a pedestal and hemisphere-form bearing. The bearing is attached to the moving platform with small satellite or layout of sa
    ... Rotates through 360° along one axis (vertical), the possibility of rotation in two horizontal axises is limited. Air bearing consists of a pedestal and hemisphere-form bearing. The bearing is attached to the moving platform with small satellite or layout of satellite. Also the air bearing includes a compressor and trap. The trap device is designed for the safe descent of the installed satellite layout with a bearing on the pedestal for conducting the experiment, and lifting after the end of the experiment. The compressor is needed to create a thin layer of air between the bearing and the pedestal for movement with minimal friction. The load capacity of the air bearing is 35 kg.
    Read more...
