CubeSat ADCS Testing Facility

    • CubeSat ADCS Testing Facility

    Purpose:
    Designed for functional testing of CubeSat 3U orientation and stabilization system.
    Year of release: 2014
    Guaranteed service life (years): _
    Estimated production / delivery time (months): 6
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    Dimensions of test bench, mm, not less than 5000х3000х2500
    Mass, kg, not less than 250
    Power voltage, V 220
    Computer processor frequency, GHz 3
    RAM capacity, Gb, not less than 4
    Video card, Gb, not less 1
    Hard disk, Gb, not less 500
    Screen, difinition, not worse 1920х1080
    Balancing system manual

    Description

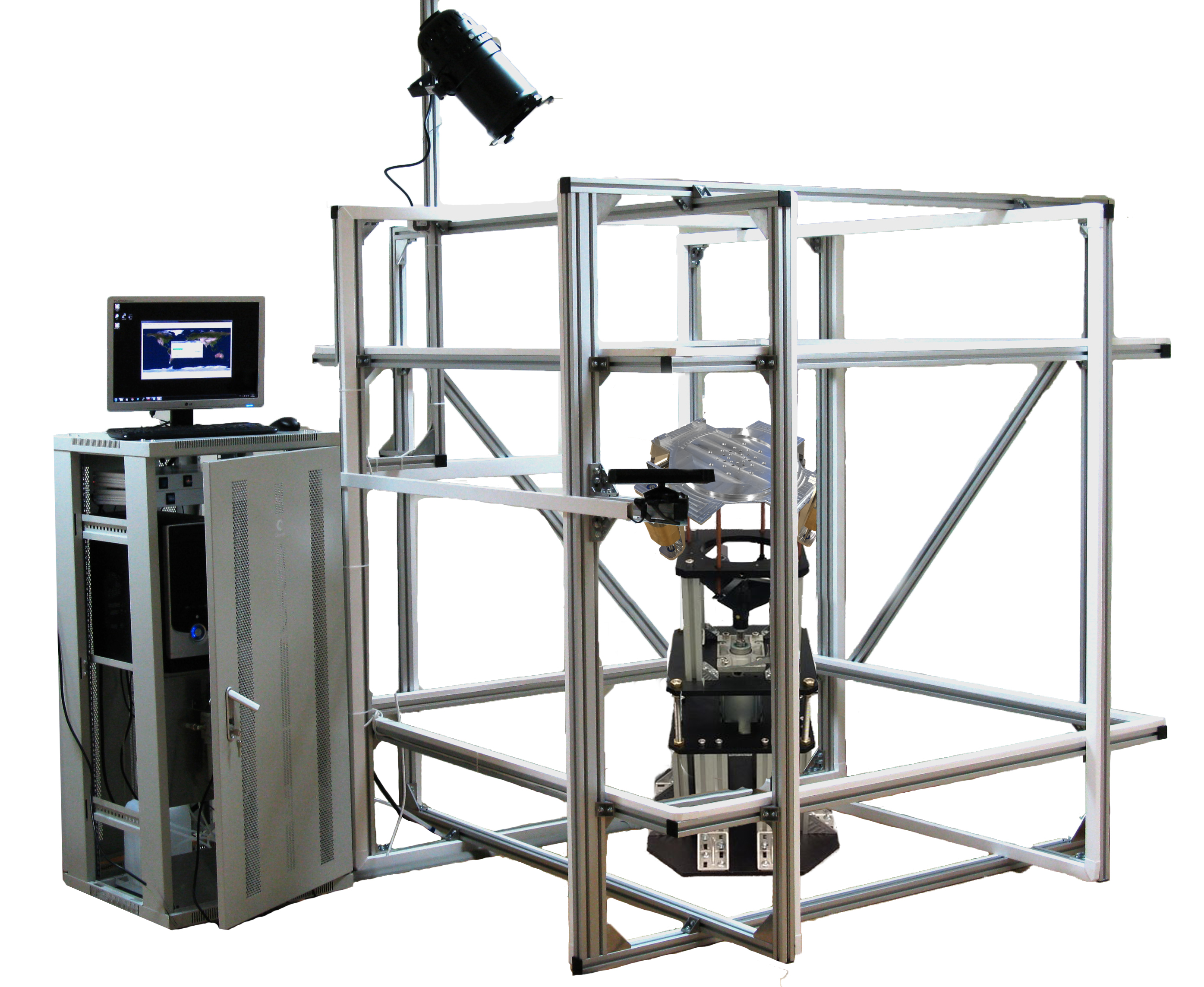

    Contents: - air bearing 15 kg - 1 pc.; - platform for installation of the satellite CubeSat 3U - 1 pc.; - sun simulator (halogen) - 1 pc.; - magnetic field simulator - 1 pc.; - automatized working place - 1 pc.; - autonomous measurements system - 1 pc.
