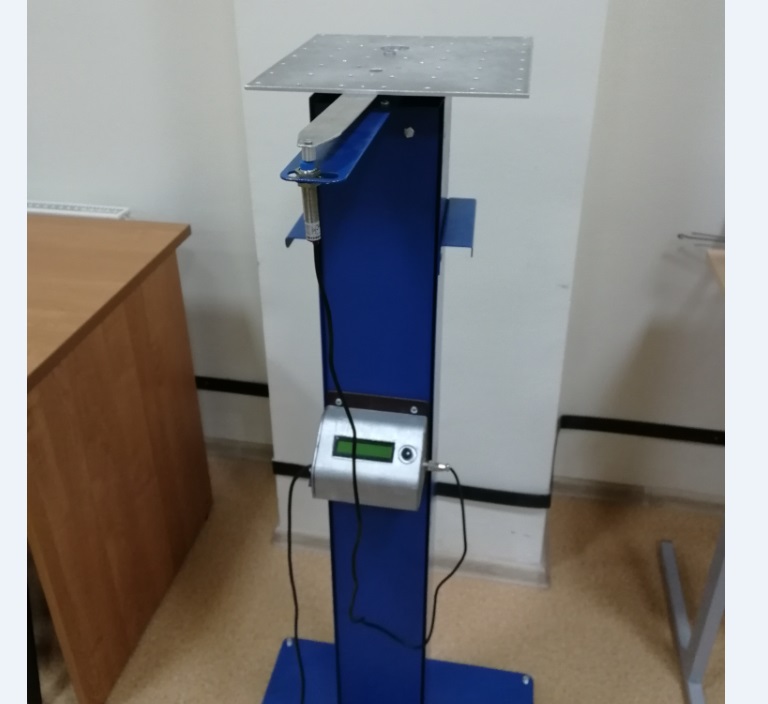

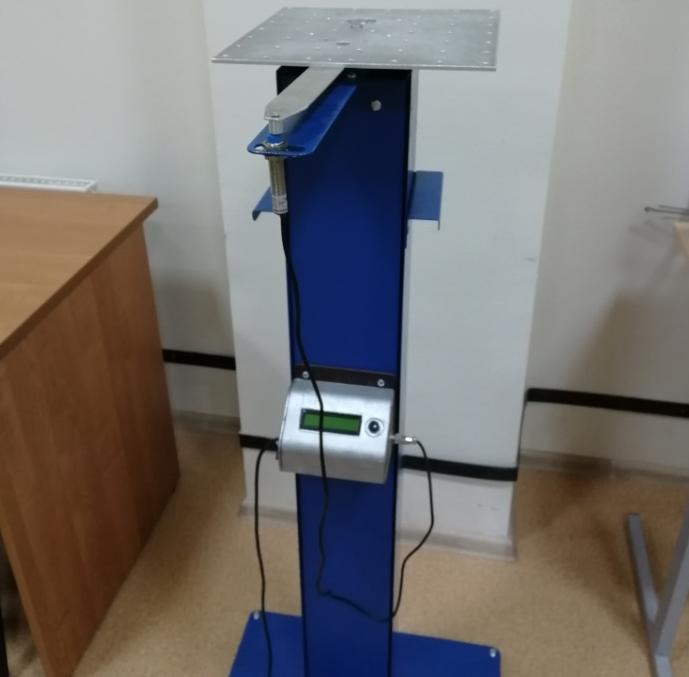

Equipment for determing the center-of-mass position and inertia characteristics of nanosatellites

    • Equipment for determing the center-of-mass position and inertia characteristics of nanosatellites

    Purpose:
    Designed for detrmination of the center-of-mass position and inertia characteristics of nanosatellite.
    Year of release: 2017
    Guaranteed service life (years): 3 years
    Estimated production / delivery time (months): 12
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Inaccuracy of the center-of-mass position determenig not more then 1 mm
    Accuracy of axial moments of inertia determination not less then 1.5%

    Description

    Features:
    - size of equipment – 500 х 450 х 1300 mm;
    - maximum dimentions of the objects are 350 х 150 х 150 mm;
    - supply voltage is 220 V (voltage at the equipment is  5 V);
    - range of the mass of the objects is
    ... Features:
    - size of equipment – 500 х 450 х 1300 mm;
    - maximum dimentions of the objects are 350 х 150 х 150 mm;
    - supply voltage is 220 V (voltage at the equipment is 5 V);
    - range of the mass of the objects is 1… 10 kg;
    - counting of measurments is electronic (display and memory card);
    - range of operating temperature is 0 … 35˚С;
    - set of fixing devices of nanosatellite at the equipment not included.
    Read more...
