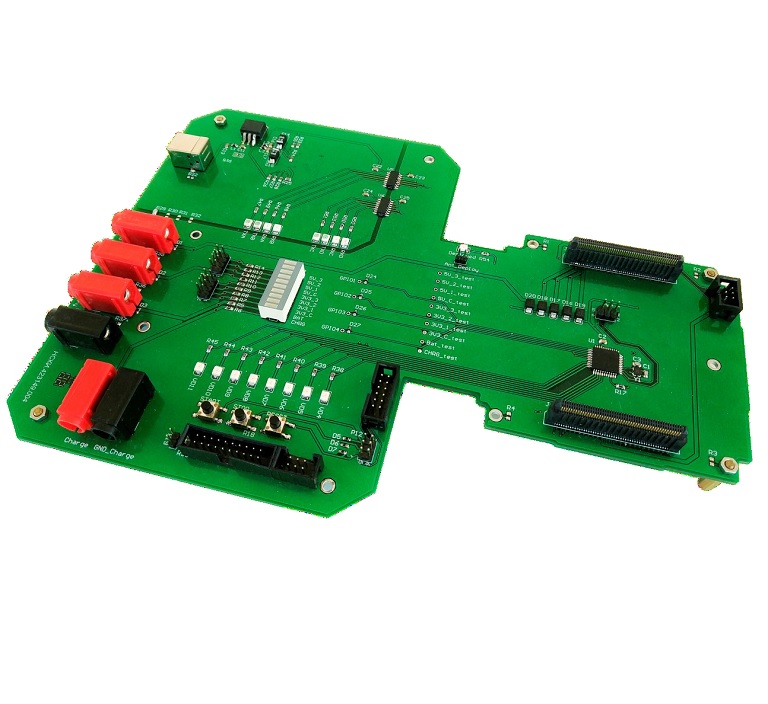

Nanosatellite Debug Board

    • Nanosatellite Debug Board

    Purpose:
    Board designed to allow debugging of any onboard system or full nanosatellite.
    Year of release: 2016
    Guaranteed service life (years): 1 year
    Estimated production / delivery time (months): 6
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Input voltage 3.3 3.3 / 5 V
    Indication LED
    Solar cell channels 1
    Connection to PC USB
    Debugger interfaces JTAG, PDI, UART, I2C

    Description

    For debugging used UART interfaces with galvanic isolation between PC and nanosatellite. Features: - external power; - power channel status indicat
    ... For debugging used UART interfaces with galvanic isolation between PC and nanosatellite.
    Features:
    - external power;
    - power channel status indication;
    - debugger interfaces;
    - onboard system emulation;
    - terminal interfases.
    Read more...
