Test Bench for Mutual Movement of Spacecraft

    • Test Bench for Mutual Movement of Spacecraft

    Purpose:
    Designed to ensure the free movement of the studied objects in the horizontal plane with minimal friction.
    Year of release: 2015
    Guaranteed service life (years): _
    Estimated production / delivery time (months): 9
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Dimensions, mm 5000х6000х3000
    Active area size 1860х2480
    Disk (w/ control system electronics) carrying capacity, kg, up to 10
    Gap between disk and table, mm, up to 0.5
    Working medium air
    Power consumtion, kW 20

    Description

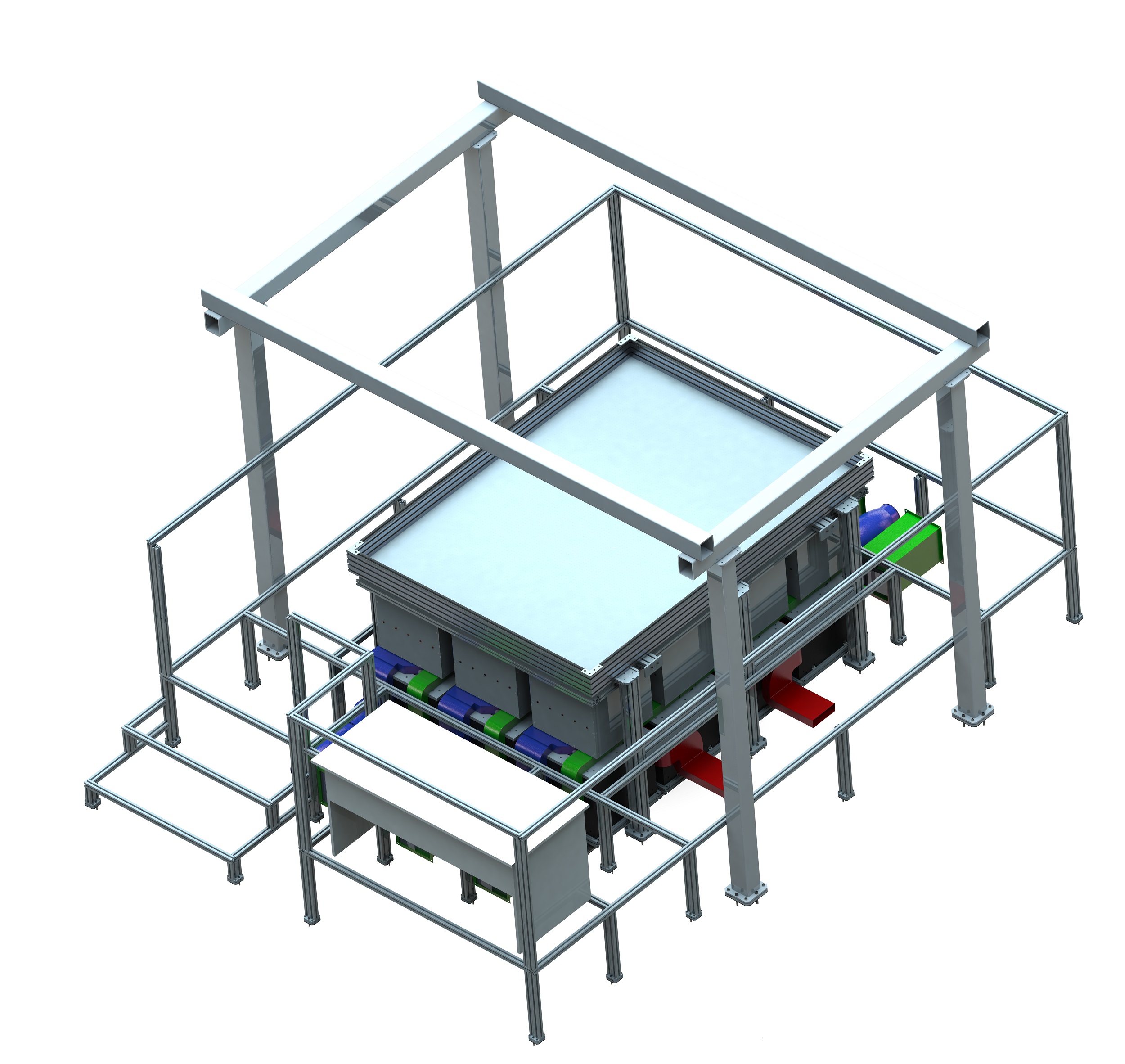

    The aerodynamic table is a precise horizontal surface with a grid of holes, through which air from an external fan is supplied under pressure. Air pressure allows to hold a load on an air cushion - one or more mock-ups of moving objects up to 10 kg each - and
    ... The aerodynamic table is a precise horizontal surface with a grid of holes, through which air from an external fan is supplied under pressure. Air pressure allows to hold a load on an air cushion - one or more mock-ups of moving objects up to 10 kg each - and to define motion parameters with use of autonomous measurements system.
    Read more...
