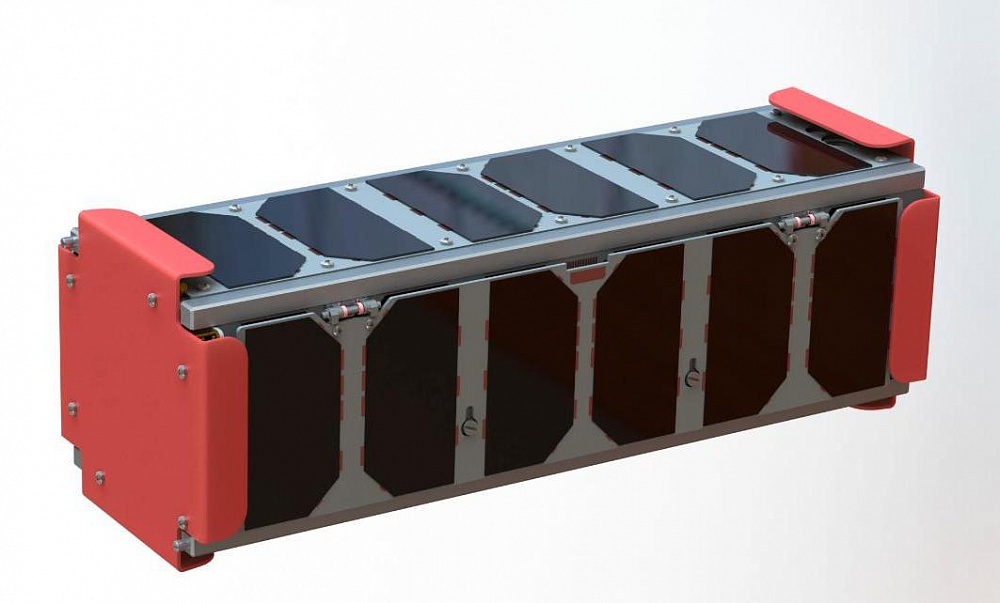

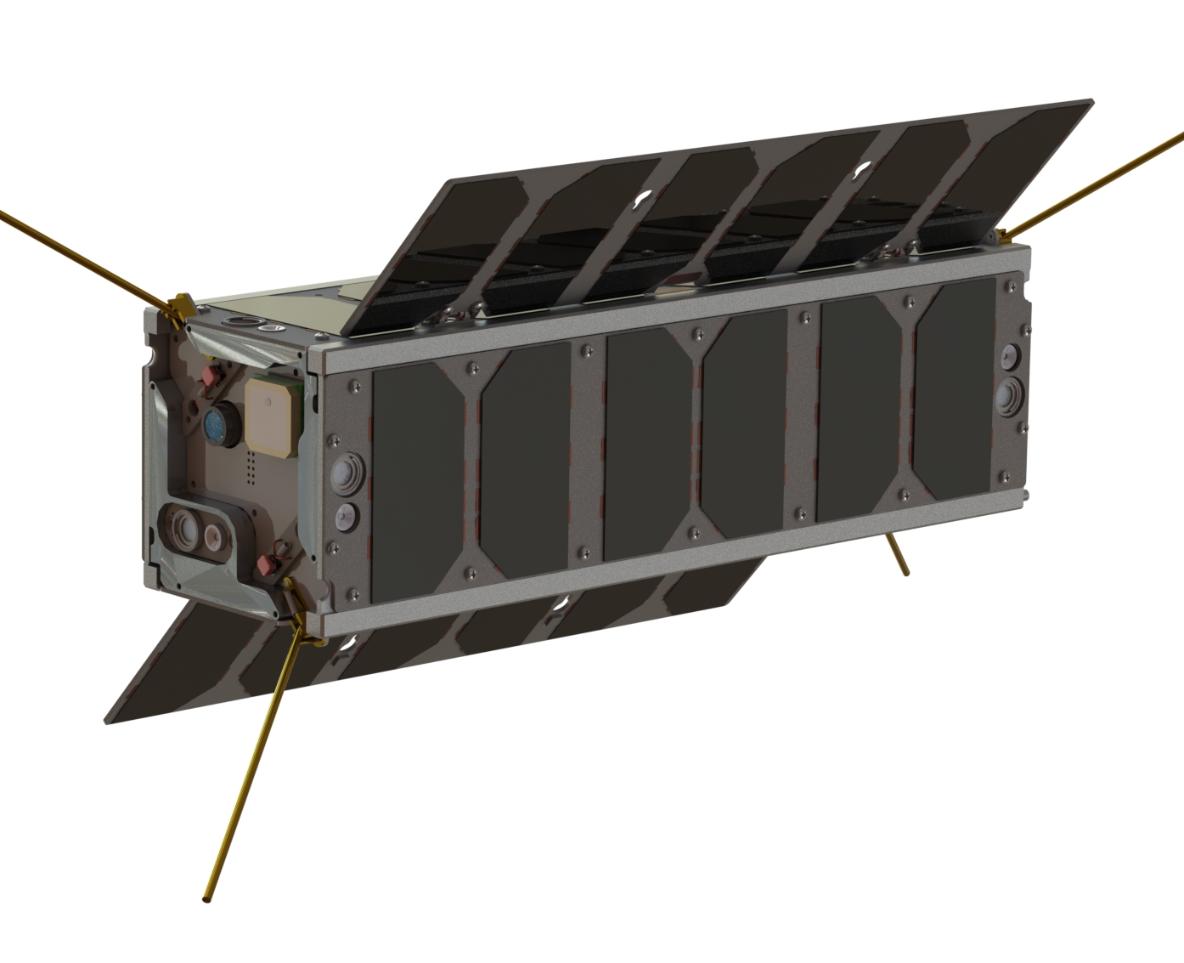

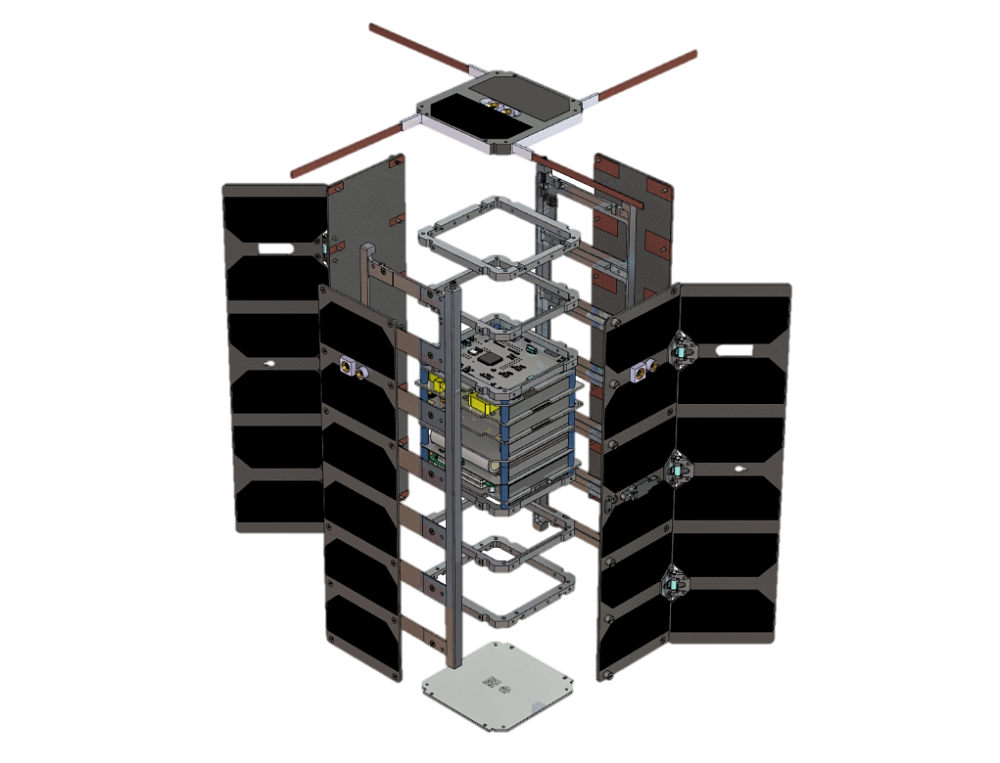

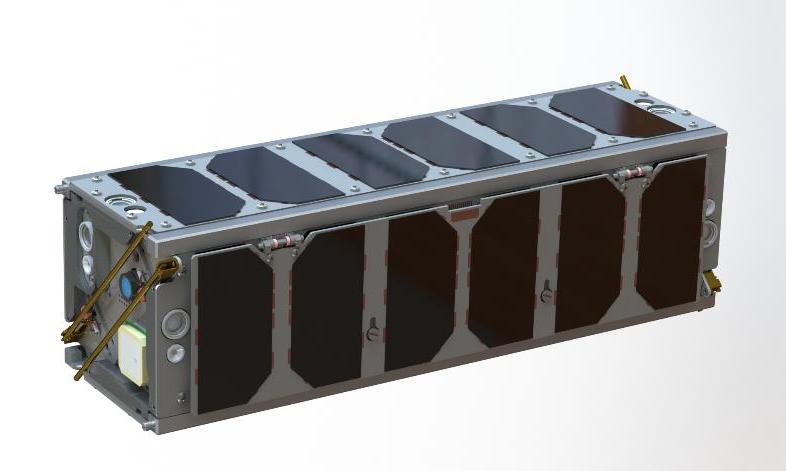

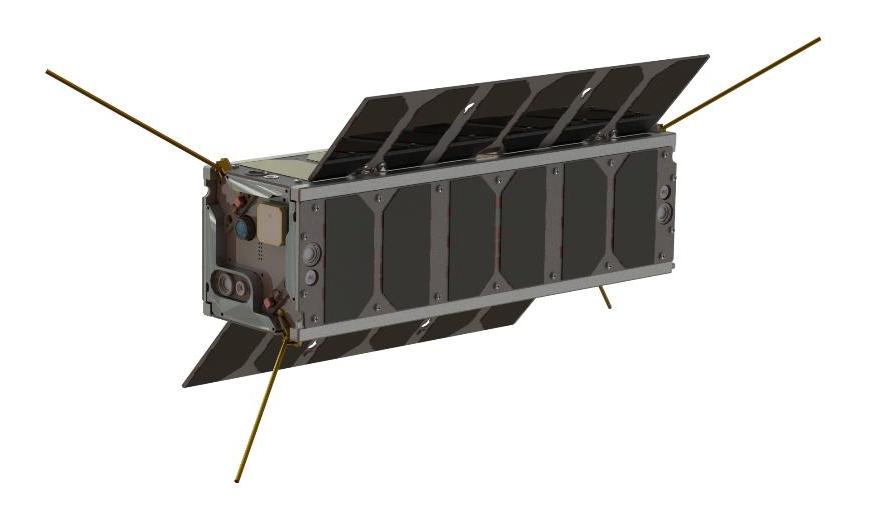

3U Cubesat Platform

    • 3U Cubesat Platform

    Purpose:
    This platform is intended for operation in space conditions at an altitude of up to 1500 km.
    Year of release: 2017
    Guaranteed service life (years): 1 year
    Estimated production / delivery time (months): 12
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Mass without Payload 3 kg
    Available average power 12 Wt
    Average power consumption of onboard systems no more 3 Wt
    Battery Capacity 10 А*ч
    Onboard voltage bus 3.3, 5, 8.4 V
    Orientation accuracy not worse 1 deg.
    Stabilization accuracy not less 0,2 deg\s
    Voltage and current load of the onboard network for Payload 5A at 3.3 V; 3A at 5 V; 2A at 8.4 V
    Payload volume 2U (10 х 10 х 20 сm)
    Available weight for Payload not more 2.5 kg

    Description

    Universal 3U CubeSat Platform.
