Conical Adapter. Type 3

Providing specified interface between the spacecraft and upper stage.
Flight qualification of the product: Yes
Brief history of flight qualification:
Flight qualification since 2000.
Possibility to adapt the product to customer requirements: Yes

Parameter Value
Height, mm 1200/150/900/150
Mass, kg 134.82/19.82/115/115
Ring bore diameter, upper joint-lower joint, mm 1172 - 2040/1172 - 1294/1294 - 2000/2000 - 2040
Booster / Launch vehicle Persei 14S48 booster/ Angara launch vehicle

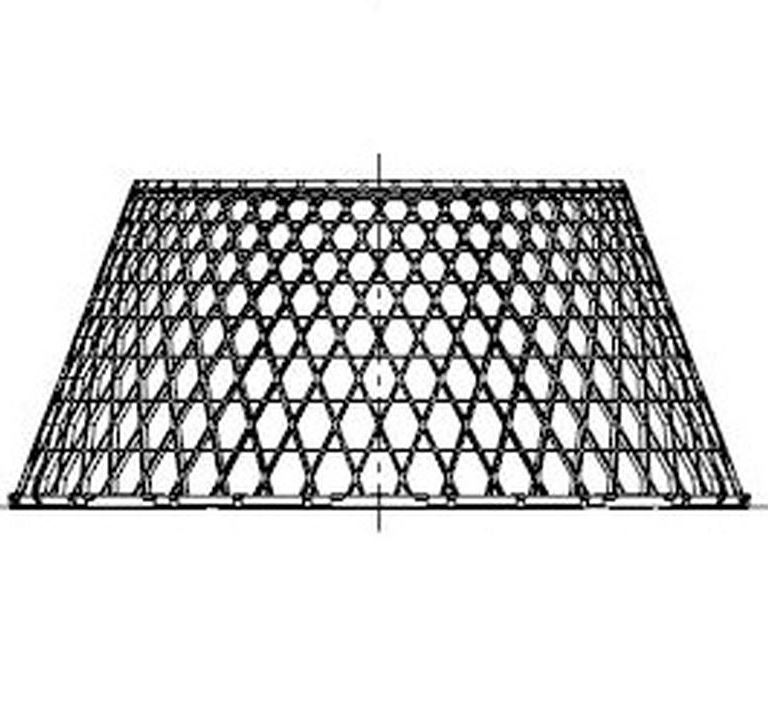

Conical grid shell made from CFRP with two interface rings.
