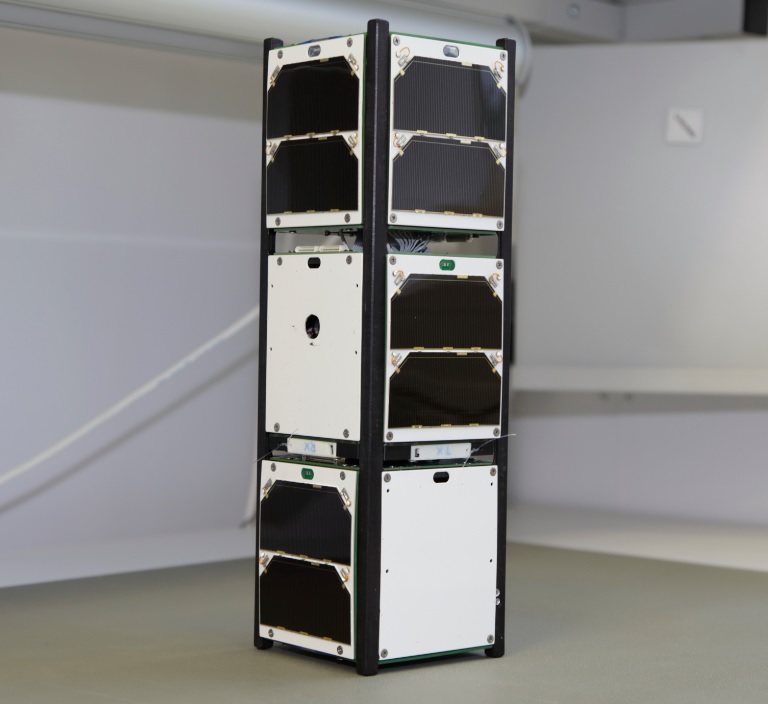

Nanosatellite Platform of CubeSat 3U Format

    • Nanosatellite Platform of CubeSat 3U Format

    Purpose:
    SamSat 3U platform is designed for scientific and technological experiments.
    Year of release: 2016
    Guaranteed service life (years): 1 year
    Estimated production / delivery time (months): 12
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Interfaces for payload connecting CAN, I2C, SPI, UART
    Voltage of payload 3.3 / 5 / 7 / 14 В
    Maximum current consumption of payload 2 А
    Memory of microSD card 32 GB
    Сontains Onboarc computer, electrical power system, transceiver, attitude stabilization system

    Description

    Features:
    - available space for a payload is approximately 2 dm^3;
    - attitude stabilization system provides an angular speed of up to 0.5 deg / s;
    - thermal control is provided by passive means.
