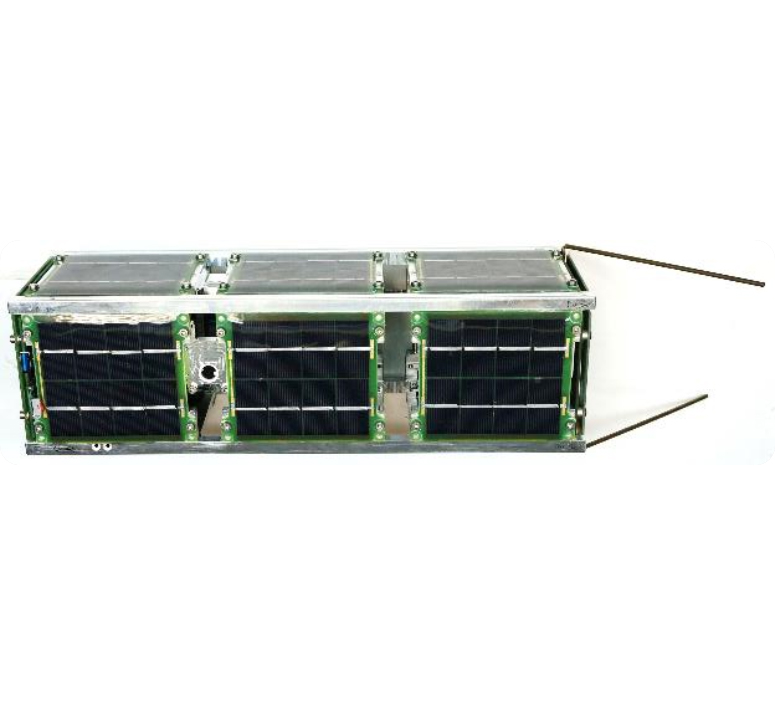

Satellite Platform CubeSat 3U for Complex Missions

    • Satellite Platform CubeSat 3U for Complex Missions

    Purpose:
    Can be used in complex space missions (f.e. Remote sensing) because contains 3-axis orientation and stabilization system, and GaAs solar panels.
    Year of release: 2018
    Guaranteed service life (years): 1
    Estimated production / delivery time (months): 9
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Target orbit LEO up to 650 km
    Active lifetime, months, not less than 6
    Dimensions, mm 108х108х340,5
    Mass (assembled, w/o payload) kg, not more than 2
    Available space for payload, mm 80*70*120
    Accumulator capacity, W*h, not less than 39
    On-board interface CAN2.0 B
    Available average power consumption of payload per orbit, W, not less than 2
    Transmitter power, W 1
    Radiochannel speed, half-duplex, bps 9600

    Description

    Assembled, verified and fully tested by the manufacturer satellite platform CubeSat 3U. Payload integration is possible before tests. Contents: - side GaAs solar panels with coils – 12 pcs. - end edge GaAs solar panels with coils – 2 pcs. - power supply
    ... Assembled, verified and fully tested by the manufacturer satellite platform CubeSat 3U. Payload integration is possible before tests.
    Contents:
    - side GaAs solar panels with coils – 12 pcs.
    - end edge GaAs solar panels with coils – 2 pcs.
    - power supply system (with battery unit) – 1 pc.
    - motherboard with ADCS controller – 1 pc.
    - UHF tranceiver – 1 pc.
    - structure CubeSat 3U – 1 pc.
    - protective covers – 6 pcs.
    - UHF antenna with service panel – 1 pc.
    - charger – 1 pc.
    - transportation case for 3U – 1 pc.
    Read more...
