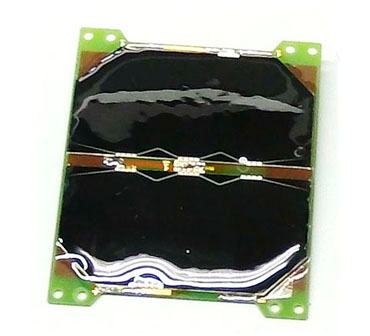

GaAs Solar Panel with Coils (side)

    • GaAs Solar Panel with Coils (side)

    Purpose:
    The electrical source of the satellite. Can use built-in electromagnetic coils for stabilization.
    Year of release: 2017
    Guaranteed service life (years): 1
    Estimated production / delivery time (months): 5
    Flight qualification of the product: Yes
    Brief history of flight qualification:
    In the composition of the satellites SiriusSat-1.2 (launched on 15.08.18.).
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    Dimensions (w/o connector), mm 98 х 82.6 х 1.7
    Mass, g 34
    Interface Hirose GT8E connectors, scalable
    Open Circuit Voltage (Voc), V 5.4
    Short Circuit Current (Isc), mA 500
    Voltage at max. Power (Vmp), V 4.4
    Current at max. Power (Imp), mA 480
    Efficiency, % 28
    Coil equivalent area (typ.), m² 1.9
    Coil resistance, Ohm 200

    Description

    Uses GaAs photo-electric converters and has built-in electromagnetic coils. Features: - compatible panels with SPUTNIX and ISIS CubeSats structures; - super-diode protection circuit; - built-in planar coil; - scalable power and coils using several panels;
    ... Uses GaAs photo-electric converters and has built-in electromagnetic coils.
    Features:
    - compatible panels with SPUTNIX and ISIS CubeSats structures;
    - super-diode protection circuit;
    - built-in planar coil;
    - scalable power and coils using several panels;
    - calibration report for every item.
    Read more...
