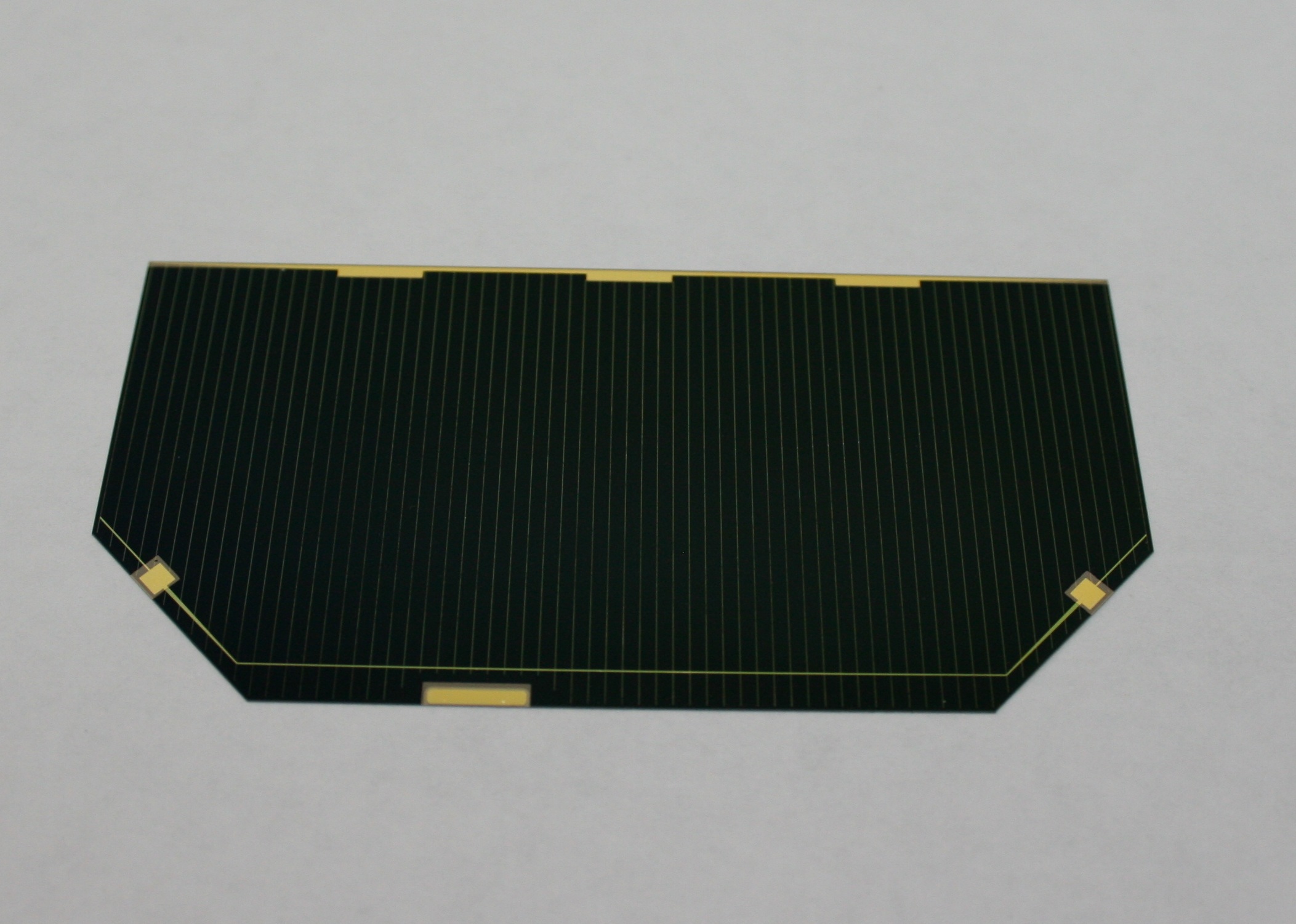

Solar Element GaInP2 / GaAs / Ge

    • Solar Element GaInP2 / GaAs / Ge

    Purpose:
    Utilization in battery design of solar power supply systems of spacecraft to convert solar energy into electrical.
    Year of release: 2007
    Estimated production / delivery time (months): 1
    Flight qualification of the product: Yes
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Efficiency factor, % 28,5
    Current, mА 500
    Voltage at maximum power, Ump, V 2,371
    Maximum power, Pmp, W / m² 381
    Thickness, mm 0,09 / 0,11 / 0,14
    Dimensions L x W, mm 80 х 40

    Description

    Semiconductor structure.

    Remark

    The size of the photoelectric converter (area from 4 mm <sup> 2 </sup> to 60.3 mm <sup> 2 </sup>) and design of the contact system may be changed upon request of the customer.
