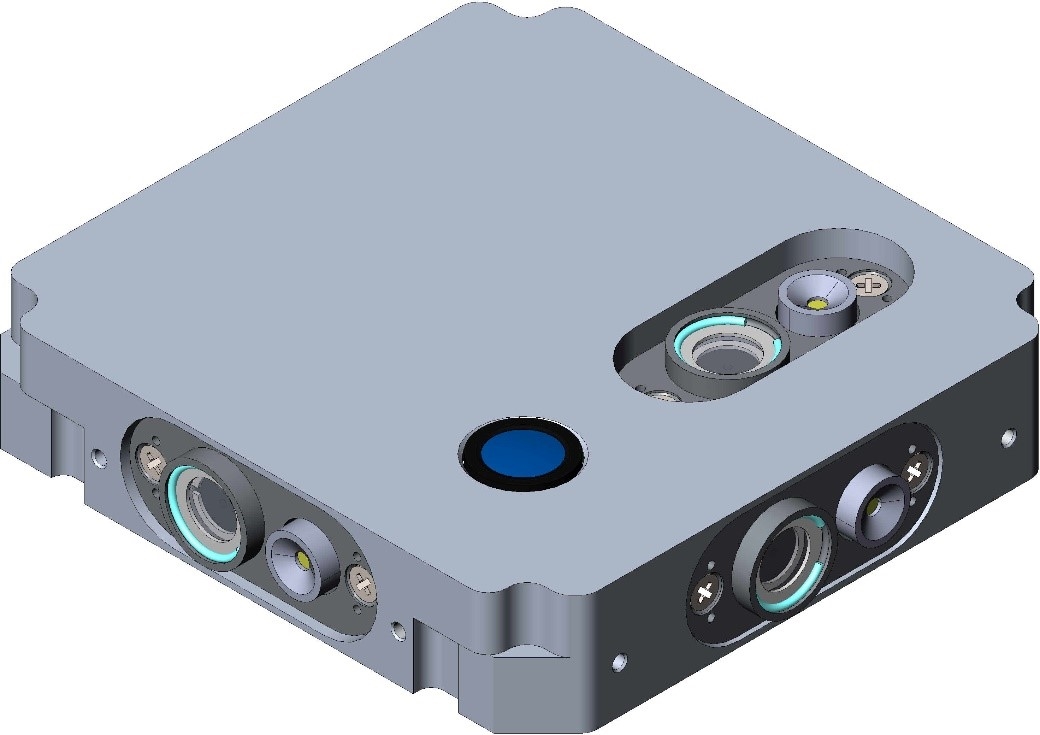

Altitude Control System

Purpose:
Used in spacecraft as a control system.
Year of release: 2018
Guaranteed service life (years):
LEO - 1 year
Estimated production / delivery time (months): 12
Flight qualification of the product: No
Possibility to adapt the product to customer requirements: Yes


Parameter Value
Orientation accuracy 1 deg
Knowledge of Orientation Accuracy 0,1 deg
Accuracy of stabilization on each axis 30 deg. s/s
Average consumption in orientation mode no more 2 Wt
Average consumption in maintain mode orientation 1 Wt
Communication interface with SC subsystems CAN
Debug interface USB. Bluetooth 3.0

Description

Use for spacecraft positioning in Space.
