Inertial Measurement Unit

    • Inertial Measurement Unit

    Purpose:
    Measurement of velocity and angle increments on three sensitive axes of fiber-optic gyroscopes and vibrating string accelerometers of measurement channels and transmission of that information to the control system.
    Year of release: 2015
    Guaranteed service life (years): 15
    Flight qualification of the product: No
    Brief history of flight qualification:
    The instrument is being developed for future manned spacecraft.
    Submit application


    Parameter Value
    Measurement range ±60°/s
    Scale point of the least category Errror 0.0001
    Random component of the care rate in startup <10-3°/h
    Weight 13 kg

    Description

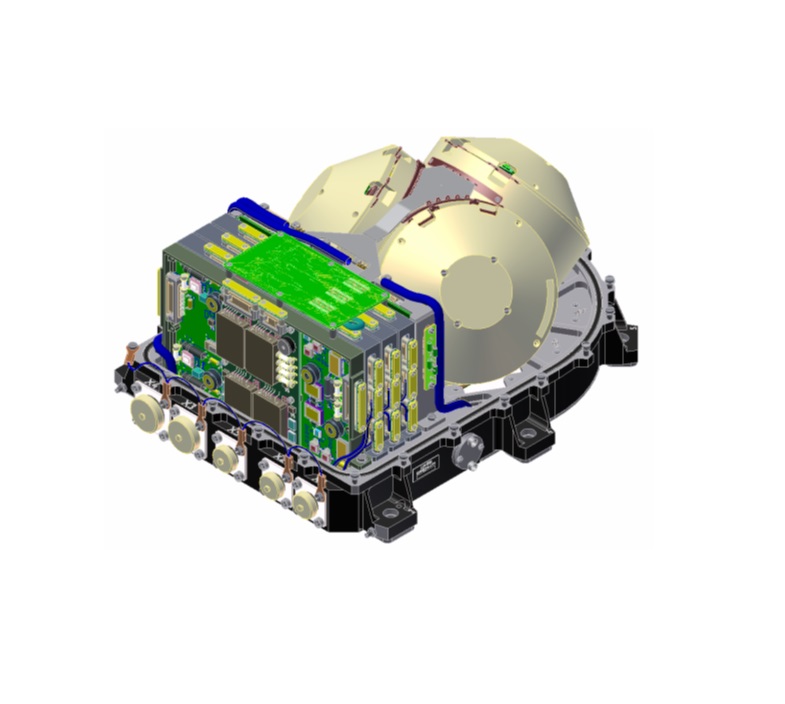

    Sealed monoblock device including electronic and opto-electronic modules with a block of sensitive elements, containing three mutually orthogonal sensitive elements of fiber-optic gyroscopes and three of mutually orthogonal sensitive vibrating string acceler
    ... Sealed monoblock device including electronic and opto-electronic modules with a block of sensitive elements,
    containing three mutually orthogonal sensitive elements of fiber-optic gyroscopes and three
    of mutually orthogonal sensitive vibrating string accelerometer elements.
    Features:
    - accurate and precise.
    Read more...

    Remark

    Testing phase.
