Reaction Wheels Block

    • Reaction Wheels Block

    Purpose:
    Executive part of CubeSat three-axis orientation and stabilization system.
    Year of release: 2018
    Guaranteed service life (years): 1
    Estimated production / delivery time (months): 5
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    Dimensions, mm 97х97х63 мм
    Mass, g 450
    Interface CAN2.0 B
    Supply voltage, V 4..15
    Form-factor PC/104
    Power consumption (keeping pace),W 3
    Power consumption (peak),W 10

    Description

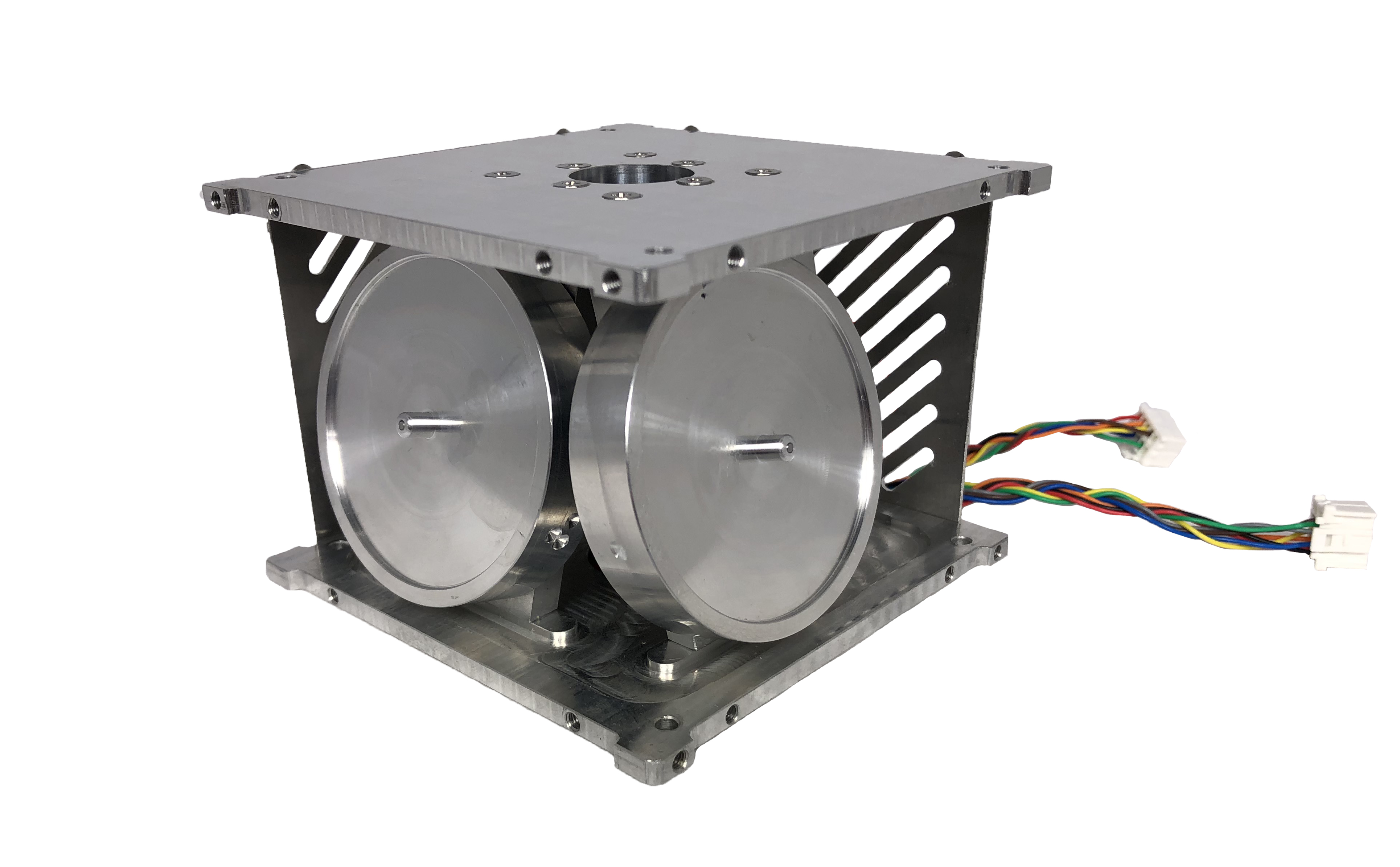

    Reaction wheels block contains four reaction wheels and provides work of three-axis orientation and stabilization system. Installation into CubeSat platforms provided. Reaction wheels dimensions: diameter 49 mm, width 12 mm, moment of inertia 150 g*cm2.
