Electromagnetic Unit (EMU) - Magnetic Torquer for Nanosatellites

    • Electromagnetic Unit (EMU) - Magnetic Torquer for Nanosatellites

    Purpose:
    Creation of a dipole magnetic moment, the value of which is proportional to the current flowing through two independent windings. EMU is used in attitude control system of spacecraft for the orientation and unloading of the reaction wheel.
    Year of release: 2019
    Guaranteed service life (years): 5
    Estimated production / delivery time (months): 3
    Flight qualification of the product: Yes
    Brief history of flight qualification:
    Ground experimental testing.
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Working orbits Low, medium and geostationary orbits
    Mass of EMU 0,027 kg
    Magnetic moment ≥0 ,2 А·m² throughout the operating temperature range
    Residual magnetic moment ≤ 0,001 А·m²
    Number of windings 1 or 2
    Supply voltage 5 ± 0,1 V
    Power consumption ≤ 0,2 W
    Operating temperature range from -20 to + 55 °С
    Overall dimensions Ø9 х 64 mm

    Description

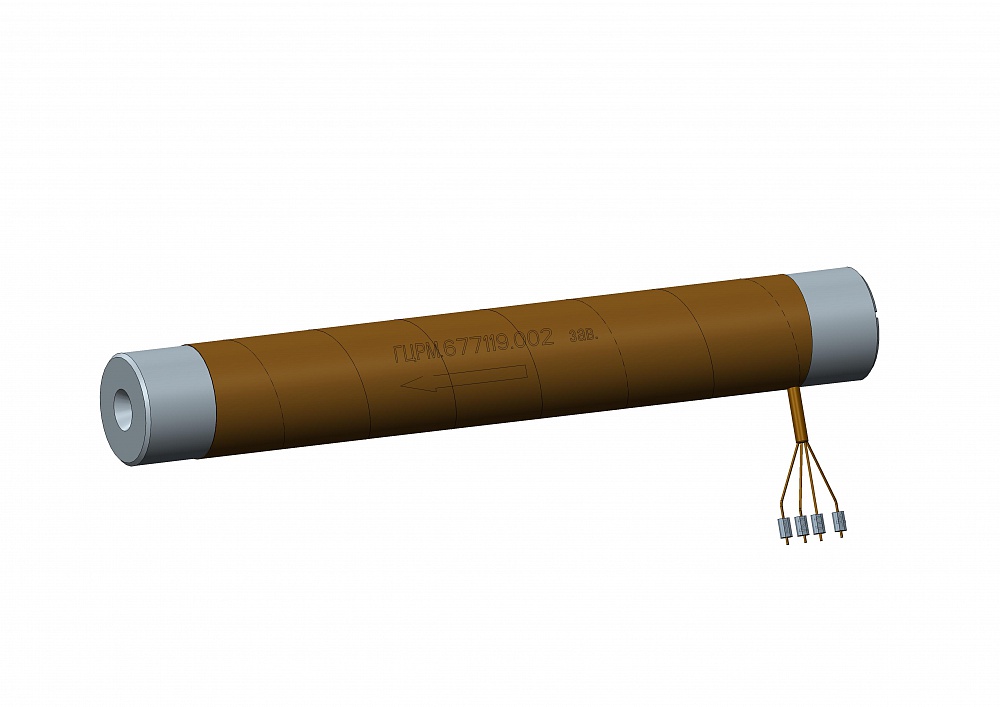

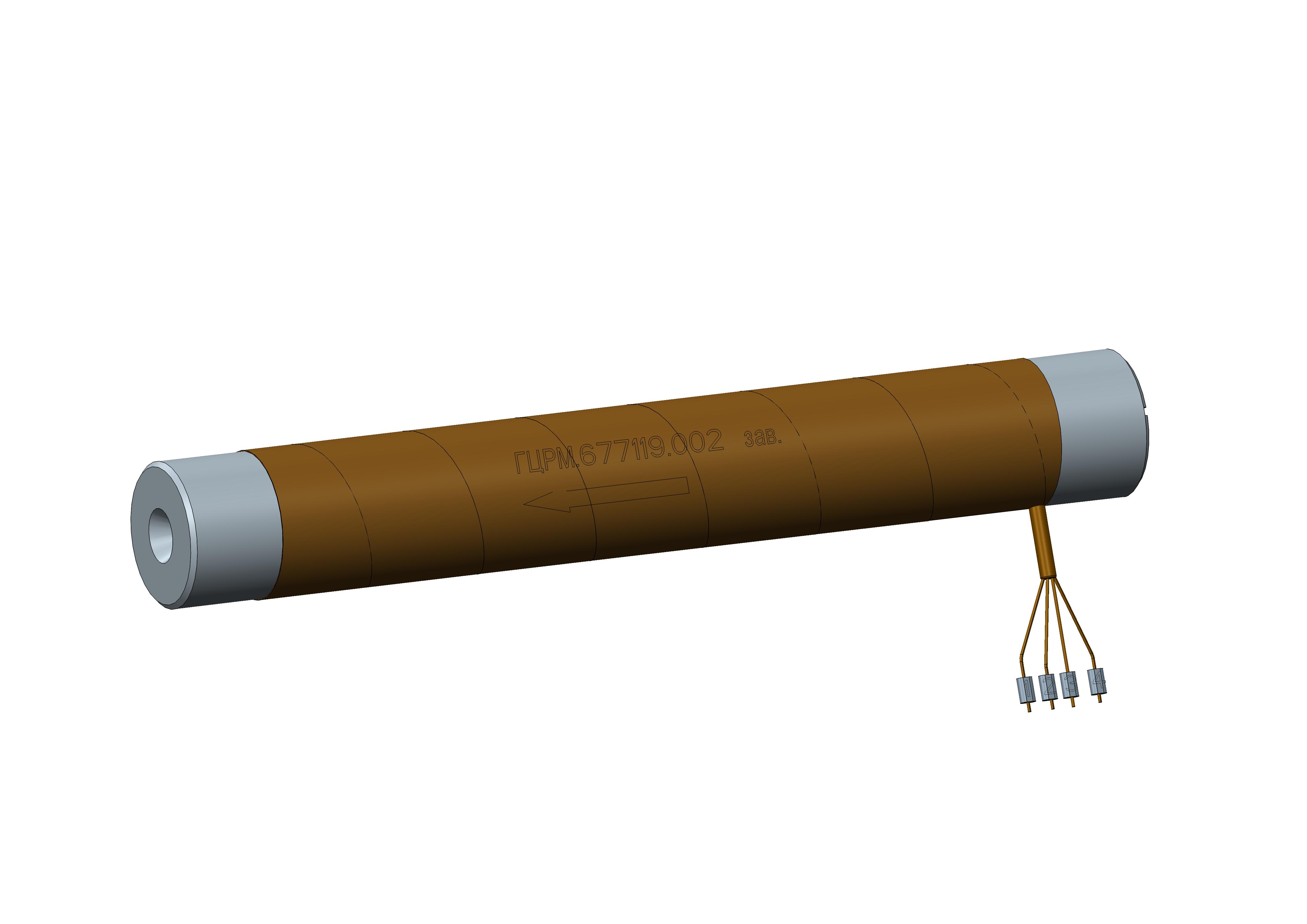

    Electromagnetic unit (EMU) - Magnetic Torquer for nanosatellites.

    Remark

    There is an option to develop and supply EMU with magnetic moment from 0.2 to 2 А·m² according to customer requirements.
