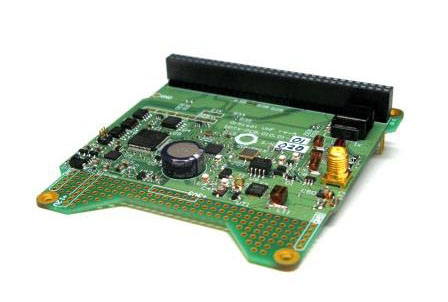

UHF Transceiver

    • UHF Transceiver

    Purpose:
    Provides data receiving and transmitting in UHF radio.
    Year of release: 2017
    Guaranteed service life (years): 1
    Estimated production / delivery time (months): 2
    Flight qualification of the product: Yes
    Brief history of flight qualification:
    In the composition of the satellites SiriusSat-1.2 (launched on 15.08.18.).
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    Dimensions, mm 87 х 93 х 13
    Mass, g 43
    On-board bus interface CAN2.0 B
    Transmission rate (half-duplex), bps, up to 9600
    Form-factor PC/104
    Supply voltage, V 5..14
    Power consumption at receiption, max, W 0.2
    Power consumption at transmission max, W 3.5
    Receiver sensitivity, dBm -119
    Output power, W 1

    Description

    Features: - half-duplex communication via single antenna; - single board radio for telemetry, telecommand and beacon; - in-flight reconfigurable beacon period, datarate, frequency, call sign etc.; - in-flight firmware update via RF with backup; - hardware
    ... Features:
    - half-duplex communication via single antenna;
    - single board radio for telemetry, telecommand and beacon;
    - in-flight reconfigurable beacon period, datarate, frequency, call sign etc.;
    - in-flight firmware update via RF with backup;
    - hardware and software watchdogs;
    - customizable beacon message;
    - ground to board bridge mode;
    - RTC with backup power;
    - rich telemetry.
